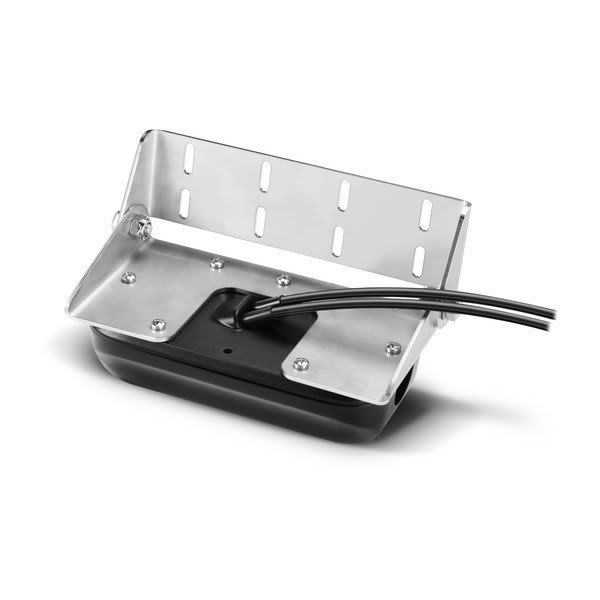

Garmin Panoptix™ PS30
Item no. GAR-10011
Gør plads til oplysningerne fra vandet under båden.
- Indgår i visning eller måling af de undervandsdata, modellen understøtter.
- Vægt: 1.8 lbs (800 g)
- Strålebredde: LiveVü Down: 120°/10°, 120°/20°, 120°/40° (+/- 45° fore/aft) RealVü Hist.: 120°x6° RealVü Down: 90°x120°(+/- 45° fore/aft sweep)
- Kabellængde: Strømkabel: 15 fodEthernetkabel: 30 fod
What is included
- PS30 Down transducer (integreret 30 fods netværkskabel, 15 fods kabel)
- RJ45-stik med omløber til eftermontering
Technical details
| Vægt | 1.8 lbs (800 g) |
|---|---|
| Strålebredde | LiveVü Down: 120°/10°, 120°/20°, 120°/40° (+/- 45° fore/aft) RealVü Hist.: 120°x6° RealVü Down: 90°x120°(+/- 45° fore/aft sweep) |
| Kabellængde | Strømkabel: 15 fodEthernetkabel: 30 fod |
| Maksimal dybde | 300' |
| Strømtilførsel | 10-35 V |
| Strømforbrug | 10 W |
| Strømkilde | dc-powered |
| Produkt/model | Garmin Panoptix™ PS30 |
| Producent | Garmin |
| Fysisk størrelse (BxHxD) | 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm) |
| Ekkolodstype | Array med faset multistråle |
| Understøttede frekvenser | 417 kHz |
| Garmin Marine Network porte | 1 (large RJ45) |
| Temperaturområde | 0° C til 40° C |
| Sikring | 4.0 A |
| Sendestyrke | 144 W |
| Farve | silverblack |
| Funktioner for marinenavigation | vandtaet |
| Velegnet til lystfiskeritype | dybhav |
| Mærke | Garmin |
Installation and choosing accessories
Match transducer, frekvenser, stik, skroghældning og display. Et kompatibelt stik alene sikrer ikke alle funktioner.
Installation og kompatibilitet
Kontrollér transducertype, stik, frekvens, effekt, skrogmateriale, deadrise og monteringsform. Placeringen skal give transduceren så rent vandflow som muligt og passe til den kompatible Garmin-enhed.
💡 Mit råd før bestilling
Jeg anbefaler, at model, strøm, stik og monteringsforhold bliver kontrolleret, før Garmin PANOPTIX PS30 Transducer til agterspejl bestilles. Du er velkommen til at sende billeder og modelnumre, så hjælper jeg med vurderingen.
Full product description
Garmin PANOPTIX PS30 Transom Mount Transducer – designed for life on board
With the Garmin PANOPTIX PS30 Transom Mount Transducer, you get sonar or transducer equipment for viewing depth, bottom, fish, and structure under the boat. It is an obvious choice when the equipment needs to function as a well-integrated part of the boat's overall setup, and you want to ensure both compatibility, mounting, and practical use on board.
⚡ Practical advantages
- Transducer accessory
- Panoptix is available in different main versions: Down and Forward. With Panoptix Down, you get the option to choose between three presentations:
- Sonar images with real-time motion. Shows fish swimming around the boat – and your bait – in real time.
- Can provide a more detailed view of bottom conditions and underwater objects, depending on the technology selected.
- Can be integrated into a compatible Garmin sonar system together with a chartplotter or black box.
- The correct choice depends on connector type, frequency, power, hull, and the desired mounting method.
⛵ Suitable for
- Fishing, depth measurement, and gaining a better understanding of bottom conditions
- New Garmin sonar installations and upgrades
- Boat owners who want assistance with transducer selection, frequency, connectors, and mounting
📊 Specifications
| Product/model | Garmin Panoptix™ PS30 |
|---|---|
| Manufacturer | Garmin |
| Physical dimensions (WxHxD) | 3.6" x 1.7" x 6.7" (9.1 x 4.2 x 17 cm) |
| Weight | 1.8 lbs (800 g) |
| Power input | 10-35 V |
| Power consumption | 10 W |
| Sonar type | Phased array multibeam |
| Supported frequencies | 417 kHz |
| Garmin Marine Network™ ports | 1 (large RJ45) |
| Beamwidth | LiveVü Down: 120°/10°, 120°/20°, 120°/40° (+/- 45° fore/aft) RealVü Hist.: 120°x6° RealVü Down: 90°x120°(+/- 45° fore/aft sweep) |
| Cable length | Power cable: 15 ft Ethernet cable: 30 ft |
| Temperature range | 0° C to 40° C |
| Fuse | 4.0 A |
| Transmit power | 144 W |
| Maximum depth | 300' |
| Color | silver black |
| Marine navigation features | waterproof |
| Power source | dc-powered |
| Suitable for fishing type | deep sea |
📦 Box contents
- PS30 Down transducer (integrated 30 ft network cable, 15 ft cable)
- RJ45 connector with locking ring for retrofitting
🔧 Installation and compatibility
Verify transducer type, connector, frequency, power, hull material, deadrise, and mounting method. The location must provide the transducer with as clean a water flow as possible and match the compatible Garmin device.
📄 Manuals and documentation
💡 My advice before ordering
I recommend checking the model, power, connectors, and mounting conditions before ordering the Garmin PANOPTIX PS30 Transom Mount Transducer. You are welcome to send photos and model numbers, and I will help with the assessment.
