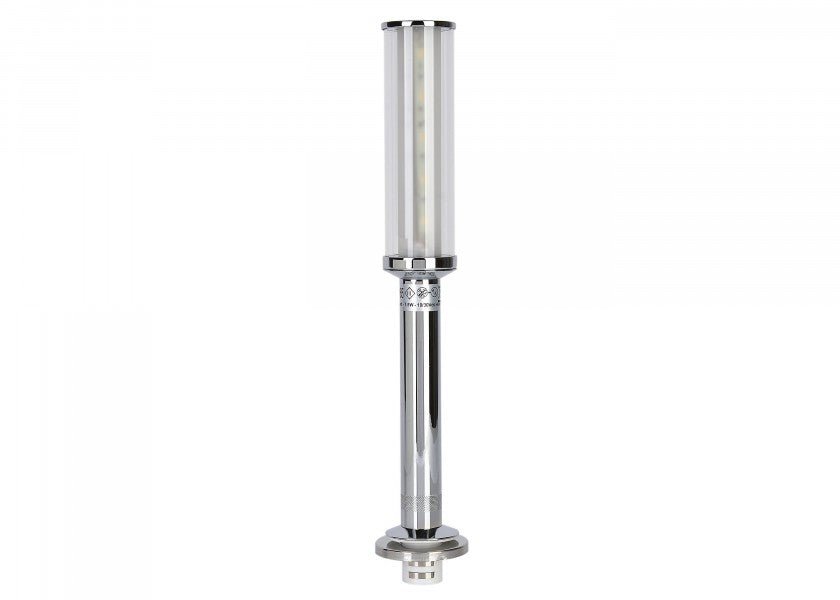

HALLEY LED Table Lamp – with glass cylinder
Item no. SS-11195
Giv den valgte del af båden et lys, der passer til brugen.
- Til belysning eller markering af det område, modellen er beregnet til.
- Højde: 330mm
- Driftsspænding: 10-30V DC
- Strømforbrug: 0,63A @ 12V eller 0,32A @ 24V
What is included
Leveres som vist. Eventuelt tilbehør afhænger af modellen.
Technical details
| Højde | 330mm |
|---|---|
| Installationsdybde (inklusive tilslutningsterminaler) | 51mm |
| Driftsspænding | 10-30V DC |
| Strømforbrug | 0,63A @ 12V eller 0,32A @ 24V |
| Lys | LED |
| Materiale | Messing (forkromet) |
| Wattforbrug | 7,5 watt |
| Lysfarve | 4000 ° K (varm hvid) |
| Beskyttelsesstandard | IP65 |
| Øverste Ø | 45mm |
| Dimensioner på dæksel i rustfrit stål (AISI 316 L) | Ø 57mm / højde 6mm |
| Nødvendigt monteringshul | 38 mm |
| Montering | 3 undersænkede skruer med maks. Ø 4mm (medfølger ikke) |
| Kapslingsklasse | IP65 |
Installation and choosing accessories
Match spænding, monteringsmål, lysfarve og tæthed med placeringen. Indendørs lys er ikke automatisk egnet til åbent dæk.
Installation
Følg altid korrekt installationsvejledning og sørg for korrekt spænding og tilslutning.
Full product description
HALLEY LED table lamp / with glass cylinder is a quality solution for those who want reliable and efficient lighting on board.
The product is suitable for marine environments where operational reliability and low power consumption are important. It is suitable for both new installations and upgrades.
⚡ Benefits
- Energy-efficient LED technology
- Suitable for marine environments
- Compact and functional design
- Easy installation
⛵ Suitable for
- Leisure boats
- Sailboats and motorboats
- Interior lighting
📊 Specifications
HALLEY LED table lamp / with glass cylinder from SVB24 is designed for use on board where you want reliable and functional lighting.
At SejlStrøm, we select marine lighting with a focus on low power consumption, easy installation, and good operational reliability. This model is particularly suitable for use on board where you want functional and reliable light.
The HALLEY table lamp has a robust, splash-proof socket with a stainless steel cover. Additional sockets (for multiple locations) are available as accessories. The multi-voltage LED (4000 K) has a power consumption of 7.5 W.
Technical specifications
| Operating voltage: | 10-30V DC |
| Light: | LED |
| Material: | Brass (chrome-plated) |
| Wattage: | 7.5 watts |
| Power consumption: | 0.63A @ 12V or 0.32A @ 24V |
| Light color: | 4000 ° K (warm white) |
| Protection standard: | IP65 |
| Height: | 330mm |
| Top Ø: | 45mm |
| Dimensions of stainless steel cover (AISI 316 L): | Ø 57mm / height 6mm |
| Required mounting hole: | 38 mm |
| Installation depth (including connection terminals): | 51mm |
| Mounting: | 3 countersunk screws with max. Ø 4mm (not included) |
🔧 Installation
Always follow the correct installation instructions and ensure correct voltage and connection.
📦 Package contents
Supplied as shown. Any accessories depend on the model.
💡 Tip from SejlStrøm
Combine with suitable cables and installation accessories for a complete solution.
