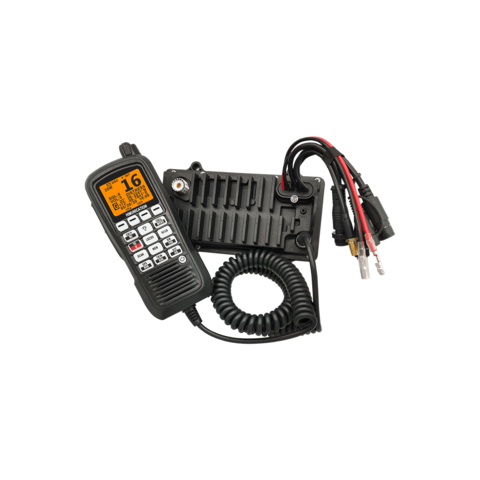

HM390C-BB DSC-D VHF Radio w/ NMEA2000 & 0183

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

HM380C-BB is one of the most compact "Black-Box" communication radios for flush mounting on the market. The HM380C-BB supports NMEA2000 and NMEA0183. This slimline VHF radio requires no depth space for panel mounting.
In addition to exceptional transmission and reception quality, the radios are simple to operate and robust against the wind and weather of the maritime environment.

Overview:

Supplied with L1 and L2 channels (F1, F2 and F3 for commercial fishermen)
MOB function
Can be installed without a flush-mount kit
Phonebook with 100 MMSI numbers
Large LCD display 67 x 50mm
NMEA0183 connection (see HM380C for NMEA2000 and HM380S for NMEA2000 and AIS)
DSC position transmitter (GPS connection required)
Dual/Triple watch (monitoring of multiple channels)
All INTL channels (currently assigned)
Storage of all INTL channels with quick selection and memory scanning
Can be programmed with 20 names with MMSI, 10 alarm calls and 20 individual calls for DSC communication
Volume control knob with on/off function, channel selection knob, and squelch control knob provide more user-friendly operation of the radio
Waterproofing that meets industrial standards, level 7 (waterproof IPX7 front panel)
A high output power of 25 watts makes it possible to establish contact over long distances at sea, with an option for a low output power of 1 watt for communication over short distances
Separate button for quick selection of the emergency call function on CH16
External interface that makes it easy to connect to GPS and external speakers
Bracket mounting provides a firm and secure attachment of the base station under various conditions.
ATIS function (user-programmable)
Adjustable backlight for optimal visibility of the large LCD display in all lighting conditions
Backlit keypad
Dimensions: Width 224mm, Height 114mm, Depth 50mm
Weight: 1.5kg
