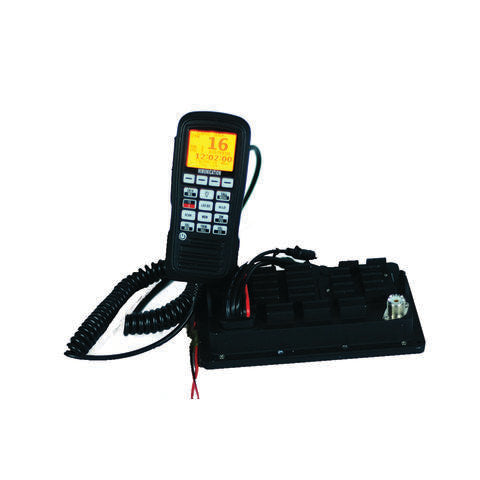

HM390S-BB DSC-D VHF Radio w. AIS and NMEA2000 & 0183
Item no. HIM-10004
The HM380S-BB VHF Class D with built-in AIS receiver is one of the most compact "Black-Box" communication radios on the market for flush mounting. The HM380S-BB supports NMEA2000 and NMEA0183. The slimline VHF radio does not require depth for panel mounting.In addition to outstanding transmission and reception quality, the radios are simple to operate and robust against the wind and weather of the maritime environment....
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The HM380S-BB VHF Class D with built-in AIS receiver is one of the most compact "Black-Box" communication radios on the market for flush mounting. The HM380S-BB supports NMEA2000 and NMEA0183. The slimline VHF radio does not require depth for panel mounting.
In addition to outstanding transmission and reception quality, the radios are simple to operate and robust against the wind and weather of the maritime environment.
Overview:
AIS with true 2-channel receiver
Supplied with L1 and L2 channels (F1, F2, and F3 for commercial fishermen)
MOB function
Can be flush-mounted
Phonebook with 100 x MMSI numbers
Large LCD display 67 x 50mm
NMEA2000 & 0183 connectivity
DSC position sender
Dual/Triple watch (monitoring of multiple channels)
All INTL channels (currently assigned)
Storage of all INTL channels with quick selection and memory scanning
Programmable with 20 names with MMSI, 10 alarm calls, and 20 individual calls for DSC communication
Rotary knob for volume adjustment with on/off function, rotary knob for channel selection, and rotary knob for squelch adjustment provide more user-friendly operation of the radio
Water resistance that meets industrial standards, level 7 (waterproof IPX7 front panel)
High output power of 25 watts makes it possible to establish contact over long distances at sea, as well as the option for low output power of 1 watt for communication over short distances
Separate button for quick selection of the emergency call function on CH16
External interface that makes it easy to connect to GPS and external speaker
Bracket mounting provides a firm and secure attachment of the base station under various conditions.
ATIS function (user-programmable)
Adjustable backlight for optimal visibility of the large LCD display under all lighting conditions
Backlit keypad
Dimensions: Width 224mm, Height 114mm, Depth 50mm
Weight: 1.5kg
