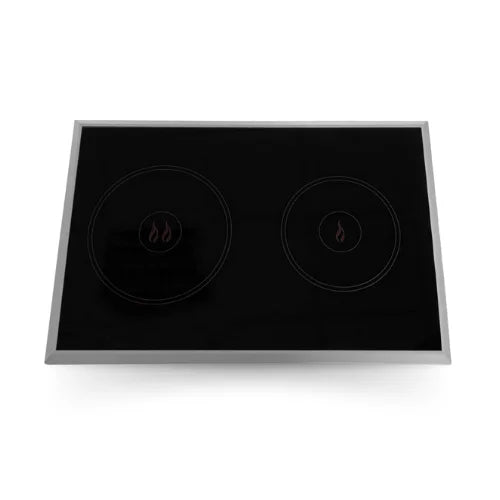

JP Heater diesel cooktop with 2 burners – 12 V
Item no. JP-10009
12 V dieselkogeplade med to varmefelter, hvor hovedfeltet klarer aktiv madlavning og det sekundære udnytter overskudsvarmen. Denne variant er uden rumvarmefunktion.
- To varmefelter – primært kogefelt og sekundært eftervarmefelt.
- Dieseldrevet kogeplade med 12 V styring.
- Uden integreret funktion til luftvarme.
Does this product suit your needs?
De to felter fungerer ikke som to selvstændigt styrede brændere: Det mindre eftervarmefelt bruger restvarme fra hovedkogefeltet.
Technical details
| Producentmodel | JP5685 |
|---|---|
| Brændstof | Diesel |
| Spænding | 12 V |
| Varmeeffekt | 900–2.200 W |
| Brændstofforbrug | 0,11–0,264 l/time |
| Vejledende indbygningsåbning | 472 × 302 mm |
| Vægt | 7,4 kg |
Installation and choosing accessories
Følg producentens manual med korrekt udstødningsføring, forbrændingsluft og ventilation. Brug ikke kogefunktionen uden gryde, under kørsel eller under tankning. Denne variant har ingen luftvarmefunktion.
Full product description
The JP Heater JP5685 is a 12 V diesel cooktop with two heating zones (a main zone and a secondary residual heat zone) for compact kitchens in boats, caravans, and campers. This version does not have a cabin heating function – it is intended for cooking.
Advantages and function
- Diesel-powered cooktop for 12 V systems.
- The two heating zones are not two independently controlled burners. The secondary zone uses residual heat from the primary zone to heat or keep food warm.
Technical information
- Model designation: JP5685
- Fuel: diesel
- Supply voltage: 12 V
- Heat output: 900–2,200 W
- Fuel consumption: approx. 0.11–0.264 liters/hour
- Installation opening according to manual: 472 × 302 mm
- Net weight: approx. 7.4 kg
Installation and safety
Exhaust and combustion air must be routed correctly according to the manual. The unit must not be used while driving, refueling, or without a pot on the heating zone in cooking mode. Check ventilation openings and fire clearance distances. When installing on a boat, suitability and mounting must be assessed specifically.
Manual and documentation
JP Heater – official user manual for diesel cooktops (PDF, Polish).
