Kus fuel gauge waste, white 0-190hm, 12/24V

Your selected configuration: Standard

Kontrollér spænding, slangediametre, ventiler og afløbsføring efter producentens manual.

Kompatibilitet

Skal kombineres med en niveaugiver, der leverer præcis 0–190 Ω. En 0–190 Ω giver og en 240–33 Ω måler må ikke blandes, og omvendt.

KUS waste tank gauge, white 0-190 ohm, 12/24V – function, application and specifications

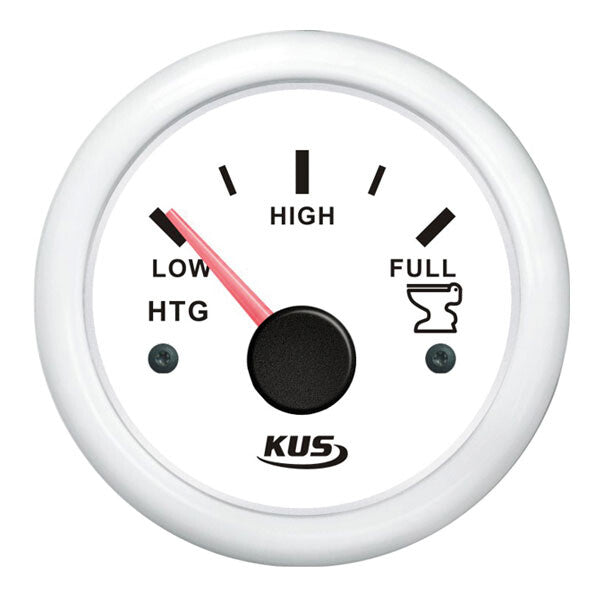

KUS waste tank gauge, white 0-190 ohm, 12/24V is a 52 mm holding/waste tank instrument for displaying the level in a septic or wastewater tank. This variant uses a 0–190 Ω resistive signal.

⚡ Practical benefits

• Displays the tank level so you can see when the holding tank needs to be emptied.
• Matches a level/waste sender with the same 0–190 Ω signal.
• 12/24 V operation makes the instrument suitable for standard boat installations.
• IP67-rated instrument with a 52 mm mounting dimension.

⛵ Application and installation

The instrument is mounted in a Ø52 mm panel hole. Check the space available for the instrument housing and connector in your specific installation; a fixed mounting depth is not provided here as it must be taken from the precise KUS data sheet/variant.

📊 Specifications

🔌 Compatibility

Must be combined with a level sender that provides exactly 0–190 Ω. A 0–190 Ω sender and a 240–33 Ω gauge must not be mixed, and vice versa.

💡 Good to know before ordering

When replacing, the signal range is just as important as the physical diameter. Therefore, check both the Ø52 mm hole and the sender's ohm range.
