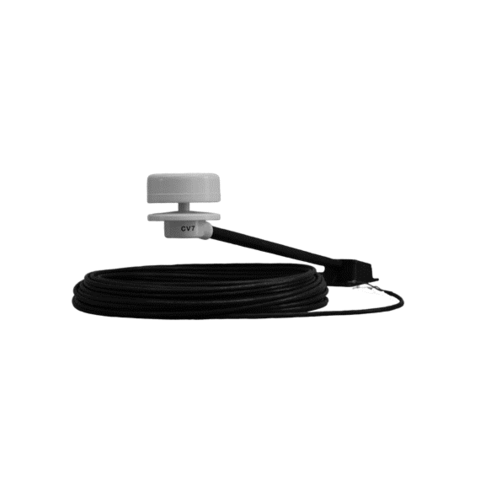

LCJ CV7-BARO3 Standard NMEA0183 Ultrasonic wind sensor with Barometer incl. 25m cable (Ray, B&G)

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

The CV7-BARO3 combines a CV7 ultrasonic wind sensor for sailboats with a 12 VDC connection box with an electronic barometer. The air pressure is added to the NMEA0183 data provided by the CV7 sensor. The tilted mounting arm provides space for other equipment at the masthead.

Specifications for CV7

Cable connection, 4 conductors:
– Red: +12 VDC (9–16 VDC, 9 mA)
– Blue: 0 V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –

Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15 °C without icing to +55 °C

Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: ±1°
Air temperature: ±1 °C

NMEA0183® sentences:
IIMWV: angle, wind speed and measurement validity
WIXDR: air temperature
WIMDA: atmospheric pressure
PLCJ and PLCJE: manufacturer data
Transmission speed: 4800 Bd

The manufacturer declares compliance with European CE requirements.

BARO connection box

Dimensions: 68 × 58 × 22 mm.
Power supply: +12 VDC.

Compatibility

Connection: NMEA0183® – 4800 Bd.
FURUNO© RD30, RD33, sounders, radars, NavNet, NavNet2 and NavNet3.
GARMIN© and devices with wind display and NMEA0183® input.
Navigation software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Seapro, Sodena and StatMETEO.

Scope of delivery

• CV7 sensor with 310 mm tilted arm
• Mounting bracket
• 25 m cable, 4 × 0.22 mm²
• 12 VDC connection box with integrated barometer
• User and installation manual

LCJ Capteurs provides a 2-year manufacturer warranty on parts and labor for work performed at the manufacturer's workshop.
