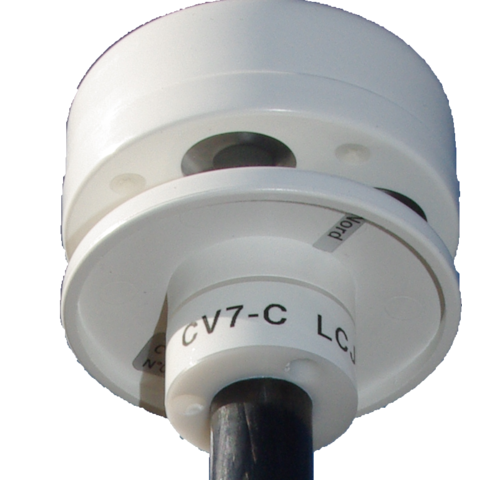

LCJ CV7-C 12/24V Ultrasonic Carbon wind sensor with standard NMEA0183
Item no. SS-12468
CV7-C ultrasonic wind sensor with NMEA0183 output is lightweight, compact, and energy-efficient. The CV7-C is configurable and particularly suitable for sailboats. In PC mode, the sensor can be set up for true wind speed and direction, damping, units of measurement, and interface formats. The CV7-C can be used connected to a PC and to any system with an NMEA® input port. Packaged with ST connection...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
CV7-C ultrasonic wind sensor with NMEA0183 output is lightweight, compact, and energy-efficient. The CV7-C is configurable and particularly suitable for sailboats.
In PC mode, the sensor can be set up for true wind speed and direction, damping, units of measurement, and interface formats.
The CV7-C can be used connected to a PC and to any system with an NMEA® input port.
Packaged with ST connection box for Raymarine ST40, ST60, and standard NMEA0183 connection.
Overview:
Output data format: NMEA0183; MWV, XDR
Output rate: 4Hz (at 60Hz measurement)
Wind speed sensitivity: 0.13 m/s │ 0.25 knots
Wind speed resolution: 0.05 m/s │ 0.1 knots
Wind speed range: 0.13 to 41.16 m/s │ 0.25 to 80 knots
Direction sensitivity: +/- 1.5°
Direction resolution: 1°
Power supply: 8 to 30V
Weight of head: 100g
Weight of unit: 200g
Mounting: vertical, 700mm carbon arm, Ø: 16mm
