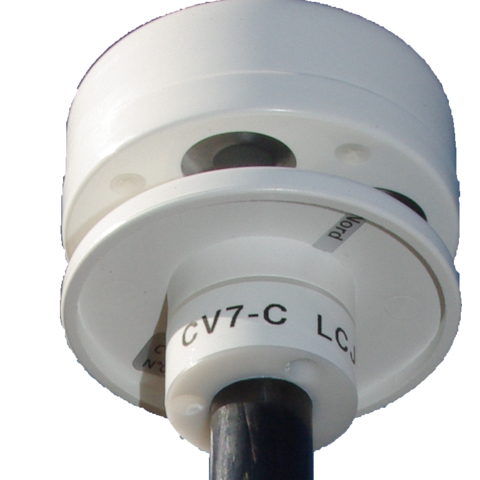

LCJ CV7-C-BG 12/24V Ultrasonic Carbon wind sensor with NMEA0183 for B&G
Item no. BNG-10003
CV7-C-BG ultrasonic wind sensor with NMEA0183 output for B&G systems is lightweight, compact, and energy-efficient. The CV7-C-BG is configurable and particularly well-suited for sailboats. In PC mode, the sensor can be set up for true wind speed and direction, damping, measurement units, and interface formats. The CV7-C-BG can be used connected to a PC and to any system with an NMEA® input port. Packed with...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
CV7-C-BG ultrasonic wind sensor with NMEA0183 output for B&G systems is lightweight, compact, and energy-efficient. The CV7-C-BG is configurable and particularly well-suited for sailboats.
In PC mode, the sensor can be set up for true wind speed and direction, damping, measurement units, and interface formats.
The CV7-C-BG can be used connected to a PC and to any system with an NMEA® input port.
Packed with NMEA0183 12V connection box for B&G instrument Network, Hydra, Hercules, H1000, as well as a barometer sensor.
Overview:
Output data format: NMEA0183; MWV, XDR
Output rate: 4Hz (at 60Hz measurement)
Wind module sensitivity: 0.13 m/s | 0.25 knots
Wind module resolution: 0.05 m/s | 0.1 knots
Wind module dynamic: 0.13 to 41.16 m/s | 0.25 to 80 knots
Direction sensitivity: +/- 1.5°
Direction resolution: 1°
Power supply: 8 to 30V
Head weight: 100g
Unit weight: 200g
Mounting: vertical, 700mm carbon arm, Ø: 16mm
