LCJ CV7-C-STBG 12/24v Ultrasonic Carbon wind sensor for Raymarine & B&G

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

CV7-C-STBG combines the CV7-C sensor designed for racing with a Raymarine ST and B&G interface.
The interface transmits CV7-C data to equipment, regardless of generation or brand.

OVERVIEW:
The CV7-C is a "High-Speed" wind direction and wind speed sensor designed for racing.
It captures wind far from the mast and sails, performs twice as fast as the CV7, and reacts extremely well even under electromagnetic interference.
The STBG interface is an adapter that converts NMEA0183 information regarding wind angle and speed and transmits it to your new or old equipment in an analog format. This way, with the CV7-C-STBG, you will gain access to all the features of your navigation instruments.

The long carbon arm allows the CV7-C sensor to measure wind far from interference caused by the mast and sails.

SPECIFICATIONS:
CV7-C:

Cabling:
4 wires:

Red: +12 VDC (9-16 VDC, 9mA)
Blue: 0V
Yellow: NMEA0183® output +
Green: NMEA0183® output -
Measurement range:

Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15° C (without icing) to + 55° C
Measurement sensitivity:

Wind speed: 0.25 knots
Wind angle: +/- 1°
Air temperature: +/- 1° C
NMEA0183® sentences:

IIMWV: Angle, wind speed, and measurement validity
WIXDR: Air temperature
PLCJ: Manufacturer data
PLCJE: Manufacturer data
Transmission rate: 4800 Bd
Meets European CE standards
STBG interface:

NMEA0183 optical optocoupler
Output NMEA0183
Output for wind speed indicator: Open collector pulse
Wind Vane: Sine / Cosine or three-phase
Power supply: 9 to 16V DC

Consumption: 10 mA
The setting varies depending on the display type and brand. You can adjust the setting by following your user manual. You simply need to activate (or not) specific buttons.
To adjust the mast alignment, press the B+ / B- key to calibrate the mast angle as accurately as possible.
COMPATIBILITY

DATALINE (Dataline, X, Navigator, IS11)
AUTOHELM (Autohelm ST50)
RAYMARINE (Raymarine ST60, Raymarine ST60 +)
VDO (VDO)
B&G (Hornet IV, Network, Hercule, Hydra, H1000, H2000, H3000, H5000)

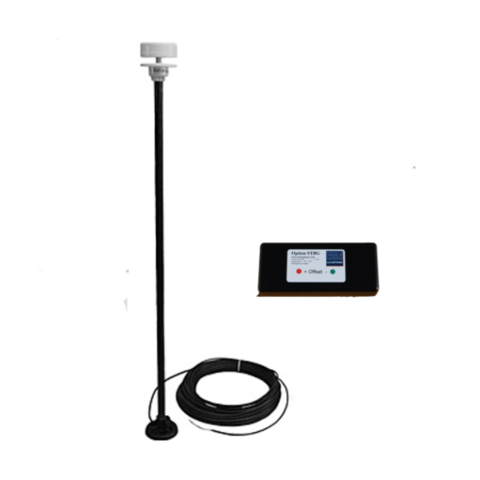

In the box:

CV7-C sensor with a 700 mm vertical carbon rod
Mounting bracket
STBG interface
Cable (25 m) 4 x 0.22 mm²
User and installation manual
2-year warranty
