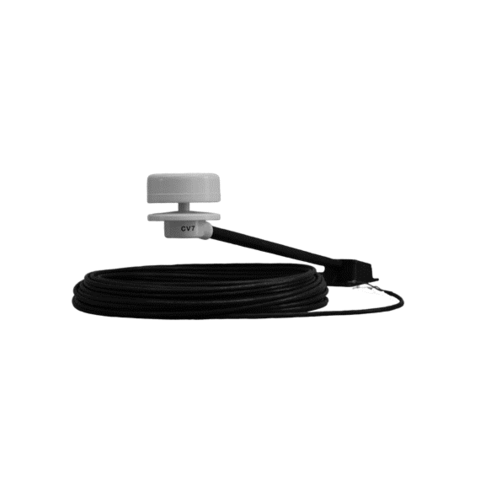

LCJ CV7 Standard Ultrasonic Wind Sensor with NMEA0183

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

CV7 is an ultrasonic wind sensor developed for sailboats. The standard model is mounted at the masthead with an angled mounting arm and is supplied ready for installation with a 25 m cable.

Specifications

Cable connection, 4 wires:
– Red: +12 VDC (9–16 VDC, 12 mA)
– Blue: 0 V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –

Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -20 °C to +60 °C

Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: ±1°
Air temperature: ±1 °C
Operating temperature: -15 °C without icing to +55 °C

NMEA0183® sentences:
IIMWV: angle, wind speed and measurement validity
WIXDR: air temperature
PLCJ and PLCJE: manufacturer data
Transmission speed: 4800 Bd

The manufacturer declares compliance with European CE requirements.

Compatibility

Connection: NMEA0183® – 4800 Bd.

The manufacturer states that the sensor has been tested with the following systems:
FURUNO© RD30, RD33, sounders, radars, NavNet, NavNet2, NavNet3 and TZT.
GARMIN© and devices with wind display and NMEA0183® input.
NKE Topline, TL25, GyroPilote, MultiGraph and NMEA® input interface/Topline.
AdvenSea W400 and W400A.
SIMRAD IS12 MEGA, IS15 Wind, IS15 Expander and SimNet AT10 interface.
Navigation software: Adrena, MaxSea/TimeZero, OpenCPN, ScanNav, Seapro, Sodena and StatMETEO.

For Silva, Nexus and Furuno FI30 devices, the manufacturer refers to the CV7-SIL.

Scope of delivery

• CV7 sensor with 310 mm angled arm
• Mounting bracket
• 25 m cable, 4 × 0.22 mm²
• User and installation manual

LCJ Capteurs provides a 2-year manufacturer's warranty on parts and labor for work performed at the manufacturer's workshop.
