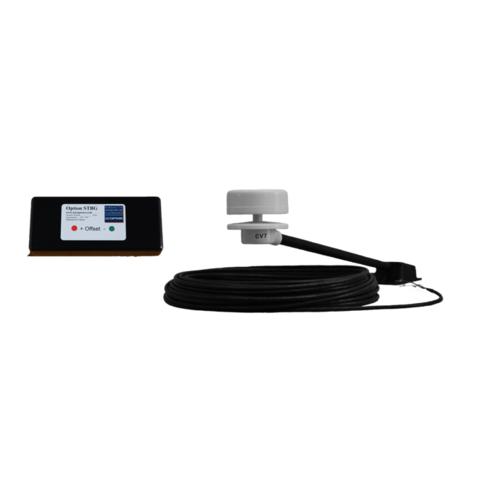

LCJ CV7-STBG Standard Ultrasonic wind sensor with Raymarine ST and B&G interface

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

The CV7 wind sensor with STBG interface is for sailboats with compatible analog navigation instruments, including those from Raymarine and B&G. The STBG interface converts NMEA0183 wind angle and wind speed data into analog signals for the connected instrument.

Specifications for CV7

Cable connection, 4 conductors:
– Red: +12 VDC (9–16 VDC, 9 mA)
– Blue: 0 V
– Yellow: NMEA0183® output +
– Green: NMEA0183® output –

Measurement range:
Wind speed: 0.25 to 80 knots
Wind angle: 0 to 359°
Temperature: -15 °C without icing to +55 °C

Measurement sensitivity:
Wind speed: 0.25 knots
Wind angle: ±1°
Air temperature: ±1 °C

NMEA0183® sentences:
IIMWV: angle, wind speed and measurement validity
WIXDR: air temperature
PLCJ and PLCJE: manufacturer data
Transmission speed: 4800 Bd

The manufacturer declares conformity with European CE requirements.

STBG interface

• Opto-coupled NMEA0183® input
• NMEA0183® output
• Output for wind speed indicator: open-collector pulse signal
• Wind direction: sine/cosine or three-phase signal
• Power supply: 9 to 16 V DC
• Power consumption: 10 mA

The setting depends on the type and brand of the instrument. Follow the user manual for selecting the appropriate switches. B+ / B- are used to adjust the reference angle so that the mast angle is calibrated as accurately as possible.

Compatibility

DATALINE: Dataline, X, Navigator and IS11.
AUTOHELM: ST50.
RAYMARINE: ST60 and ST60+.
VDO.
B&G: Hornet IV, Network, Hercule, Hydra, H1000, H2000, H3000 and H5000.

Scope of delivery

• CV7 sensor with 310 mm tilted arm
• Mounting bracket
• 25 m cable, 4 × 0.22 mm²
• STBG interface
• User and installation manual

LCJ Capteurs provides a 2-year manufacturer's warranty on parts and labor for work performed at the manufacturer's workshop.
