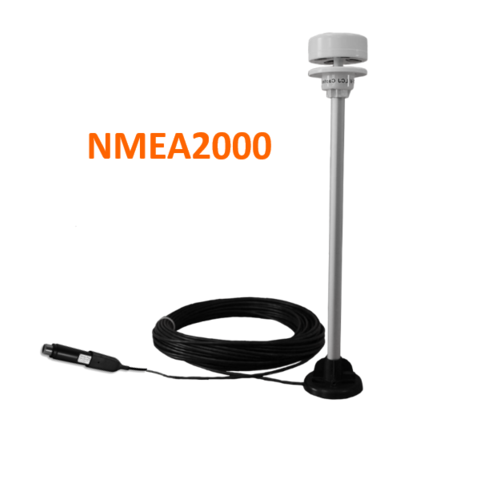

LCJ CV7-V-Windy 12/24V ultrasonic wind sensor w. NMEA2000
Item no. SS-12551
The CV7-Windy ultrasonic wind sensor with NMEA2000 output is lightweight, compact, and energy-efficient. The CV7-Windy is configurable and especially well-suited for sailboats. In PC mode, the sensor can be set up for true wind speed and direction, damping, units of measurement, and interface formats. The CV7-Windy can be used connected to a PC and to any system with an NMEA® input port. Packed with NMEA2000...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The CV7-Windy ultrasonic wind sensor with NMEA2000 output is lightweight, compact, and energy-efficient. The CV7-Windy is configurable and especially well-suited for sailboats.
In PC mode, the sensor can be set up for true wind speed and direction, damping, units of measurement, and interface formats.
The CV7-Windy can be used connected to a PC and to any system with an NMEA® input port.
Packed with NMEA2000 CanBus 12V junction box and barometer sensor.
Ultrasonic wind sensor, vertical mounting, 25m cable length, junction interface for NMEA2000® compatibility, barometer included.
Overview:
Output data format: NMEA0183; MWV, XDR
Output rate: 4Hz (at 60Hz measurement)
Wind speed sensitivity: 0.13 m/s | 0.25 knots
Wind speed resolution: 0.05 m/s | 0.1 knots
Wind speed dynamic range: 0.13 to 41.16 m/s | 0.25 to 80 knots
Direction sensitivity: +/- 1.5°
Direction resolution: 1°
Power supply: 8 to 30V
Head weight: 100g
Unit weight: 200g
Mounting: vertical, 700mm ALU arm, Ø: 16mm
