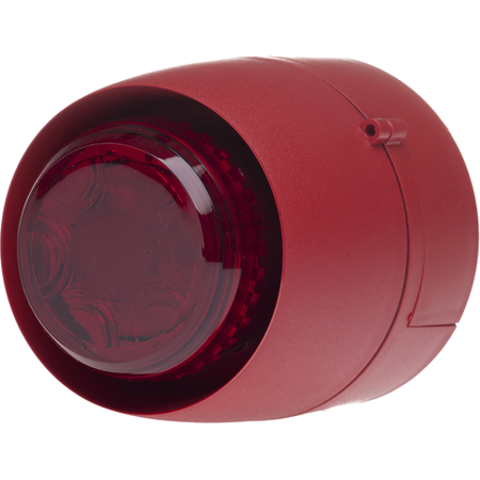

LGM-020 VTB 24V combined marine alarm horn and light SOLAS
Item no. SS-12481
Marine-approved audiovisual alarm. The VTB 24Vdc SOLAS approved sounder with beacon is part of the VTG product family, which is designed for use with conventional fire alarm systems, including marine-approved and other general 24Vdc applications. As with all VTG products, the sounder function comes standard with 32 tones. The beacon function is designed for maximum all-around visibility, combined with low power consumption using a series...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Marine-approved audiovisual alarm.
The VTB 24Vdc SOLAS approved sounder with beacon is part of the VTG product family, which is designed for use with conventional fire alarm systems, including marine-approved and other general 24Vdc applications.
As with all VTG products, the sounder function comes standard with 32 tones. The beacon function is designed for maximum all-around visibility, combined with low power consumption using a series of energy-efficient LEDs. The sounder function features a two-stage alarm override, which is activated by a third negative wire from the fire panel.
Both the sounder and beacon functions are fully synchronized. The product can also be used as a beacon only, which is easily selected via a DIL switch at the time of installation.
Approval
ABS, CE, LPCB, MED
Unit colour
Red, White
Lens colour
Amber, Blue, Clear, Green, Red
Environment
Marine and Offshore, Safe area
IP rating
21C, 65
Voltage
24 VDC
dB output
100
Manufacturer
Cranford Controls Ltd
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
