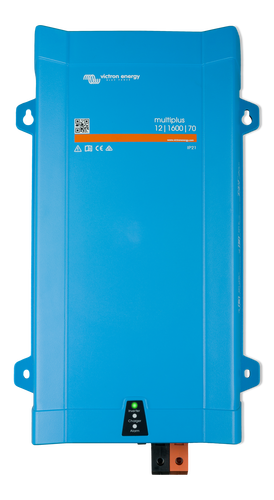

MultiPlus 12/1600/70-16
Item no. SS-11387
Kombinér strøm fra batteriet med opladning i én planlagt installation.
- Samler inverter- og ladefunktion i et kompatibelt elsystem.
- Vægt: 10 kg
- Batterispænding: 12V
- Indgangsspænding: 230VAC
What is included
- MultiPlus 12/1600/70-16
- Brugervejledning / producentdokumentation
💡 Tip fra SejlStrøm: En god inverter/lader vælges bedst ud fra hele energisystemet – især hvis du både vil bruge landstrøm, batteridrift og større 230V-forbrug ombord.
Technical details
| Vægt | 10 kg |
|---|---|
| Batterispænding | 12V |
| Indgangsspænding | 230VAC |
| Udgangsspænding | 12VDC / 230VAC |
| Ladestrøm | 70A |
| Invertereffekt | 1600VA |
| Spænding | 12 V |
| Mærke | Victron |
| Produkttype | Inverter/lader |
| Netomskifter | 16A |
| Modelserie | MultiPlus |
Installation and choosing accessories
Tjek AC/DC-spændinger, kontinuerlig effekt, ladeevne, omskiftning og krav til beskyttelse i manualen.
Det skal du vide før køb
- Kontrollér batterispænding, ønsket AC-belastning og nødvendig ladestrøm før valg af model.
- Inverter/ladere kræver korrekt kabling, sikringer og ofte god ventilation for at yde optimalt.
- Hvis installationen også skal håndtere landstrøm, generator eller avanceret systemintegration, bør hele systemet dimensioneres samlet.
Installation
Det anbefales altid at følge producentens anvisninger ved montering. Kontrollér kompatibilitet med eksisterende udstyr, korrekt strømforsyning, passende sikringer, kabeldimensionering og eventuelt behov for beslag, netværk eller ekstra tilbehør.
Full product description
MultiPlus 12/1600/70-16 is a combined inverter/charger for complete energy systems, where you want to consolidate 230V supply, battery charging, and system integration into one professional solution.
This variant provides you with a 1600VA inverter, a 70A charger, and a 16A transfer switch at 12V, making it suitable for installations using shore power, generators, or battery operation, where both reliability and a streamlined installation are important.
⚡ Benefits
- Inverter and charger combined in one unit
- Simplifies the construction of complete energy systems
- Provides both 230V supply and battery charging
- Victron quality and high operational reliability
- Easy integration into marine, mobile, and off-grid systems
⛵ Suitable for
- Sailboats and motorboats
- Campers and expedition vehicles
- Off-grid cabins and mobile workshops
- Installations with both shore power and battery operation
- Complete energy systems with 230V requirements
📊 Specifications
| Brand | Victron |
| Product type | Inverter/charger |
| Battery voltage | 12V |
| Input voltage | 230VAC |
| Output voltage | 12VDC / 230VAC |
| Charging current | 70A |
| Inverter power | 1600VA |
| Transfer switch | 16A |
| Weight | 10 kg |
🧭 What you need to know before purchasing
- Check battery voltage, desired AC load, and required charging current before selecting a model.
- Inverter/chargers require proper cabling, fuses, and often good ventilation to perform optimally.
- If the installation also needs to handle shore power, generators, or advanced system integration, the entire system should be dimensioned as a whole.
🔧 Installation
It is always recommended to follow the manufacturer's instructions during installation. Check compatibility with existing equipment, correct power supply, appropriate fuses, cable sizing, and any potential need for brackets, networking, or additional accessories.
📦 Package contents
- MultiPlus 12/1600/70-16
- User manual / manufacturer documentation
💡 Tip from SejlStrøm: A good inverter/charger is best chosen based on the entire energy system – especially if you intend to use shore power, battery operation, and larger 230V loads on board.
