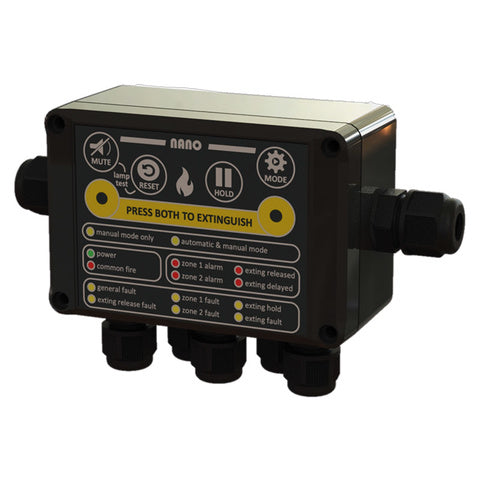

NANO fire detection and extinguishing control panel DNV

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

NANO is a standalone fire extinguishing release panel with DNV-CG 0339-2021 type approval.

The NANO extinguishing panel is developed and intended for the activation of modular extinguishing systems.

NANO is small and compact and can therefore secure locations where a standard fire/extinguishing panel is not applicable or unsuitable.

Operation is simple, straightforward, and designed in accordance with EN54-2 for fire alarm and signaling systems, and EN12094-1 for fixed firefighting systems. NANO is also DNV certified for maritime use.

Due to its construction, NANO is resistant to vibrations and shocks and is therefore very suitable for the protection of engine rooms on ships and machine areas.

NANO is equipped with dual fire extinguisher activation technology, intended for the activation of electrically operated fire extinguishers or the activation of a so-called solenoid.

NANO does not have its own emergency power supply, but has a dual power supply connection and uses the secondary power supply for the object to be protected.

The dimensions of the NANO unit are: 80 x 120 x 58 mm (h x w x d)

Approval

CE, DNV

Unit colour

Black

Environment

Marine and Offshore, Safe area

IP rating

65

Voltage

24 VDC

Manufacturer

N2KB B.V.

Detection Zones

2
