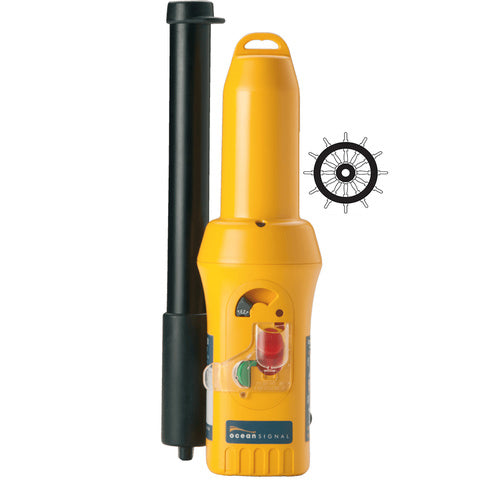

Ocean Signal SafeSea S100 Radar SART 710S-00607
Item no. OSC-10004
The Ocean Signal SafeSea S100 radar transponder is a search and rescue transponder (SART) that meets and exceeds IMO / SOLAS requirements. The S100 Search and Rescue Transponder (SART) is designed to help locate life rafts and lifeboats. Once the S100 Search and Rescue Transponder (SART) is activated, the unit remains in standby until it is automatically activated by an X-Band Radar from a nearby...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Ocean Signal SafeSea S100 radar transponder is a search and rescue transponder (SART) that meets and exceeds IMO / SOLAS requirements.
The S100 Search and Rescue Transponder (SART) is designed to help locate life rafts and lifeboats. Once the S100 Search and Rescue Transponder (SART) is activated, the unit remains in standby until it is automatically activated by an X-Band Radar from a nearby vessel. The S100 Search and Rescue Transponder then sends a series of pulses that will be displayed on the ship's radar as a line of dots, providing them with the direction and distance to the survival craft.
The S100 Search and Rescue Transponder shares the same operation as the SafeSea E100 EPIRB, which helps make it easy to use for all users.
The manual is provided in English only!
Features:
Superior battery life, even at -20° C
User-replaceable battery
Non-hazardous battery
Five-year replacement interval
Compact size for easy life raft packing
Supplied complete with telescopic pole and storage bracket
IMPA Code: 372501
SART requirements:
A SART is required on all IMO / SOLAS vessels on international voyages:
Including commercial vessels, fishing vessels, passenger vessels, commercial ships, etc.:
One SART on vessels from 300 to 500 GRT
Two SARTs on vessels over 500 GRT
One SART for every four life rafts on ro-ro passenger ships
Most larger pleasure yachts are required to carry a SART, especially if they are covered by the MCA code, which is recognized by many countries.
Other vessels would also benefit from having a SART on board.
Specifications:
"General"
Frequency range: 9.2-9.5GHz
Radiated output: > 26dBm eirp
"Environment"
Operating temperature range: -20° C to + 55° C
Storage: -30° C to + 70° C
Waterproof: >10 meters at + 20° C
Battery type: Lithium
Chemistry: Lithium / Iron disulfide (Li / FeS2)
Active operating life: >12 hours
Standby life: >96 hours
Battery replacement interval: 5 years
"Dimensions"
Height: 227mm
Body Diameter (max): 65 mm (82 mm)
"Standards and approvals"
IMO regulations: A.694 (17); MSC.247 (83)
International Radio Standards: IEC61097-1
International EMC Standards: IEC60945
European approval: Marine Equipment Directive A.1 / 4.18
USA standards: FCC CFR47 part 80.1101
SEE LINK!: em-trak SART100
