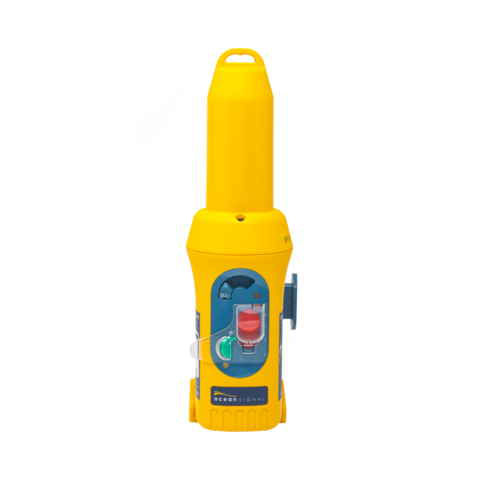

Ocean Signal safeSEA S200 AIS SART (710S-05162)

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

The Ocean Signal SafeSea S200 AIS-SART is an IMO SOLAS-compliant AIS Search and Rescue Transmitter (SART) that provides vessels required to comply with GMDSS regulations with a reliable solution for meeting mandatory SART requirements.
By utilizing AIS Class A position reports, the S200 transmits eight position report messages per minute, enabling real-time tracking in critical situations.

This cutting-edge device transmits precise GNSS/GPS satellite position coordinates to all AIS-equipped vessels within VHF range, ensuring that emergency assistance can be dispatched quickly when needed.

With an average detection range of 5 nautical miles, the S200 integrates Near Field Communication (NFC) technology for easy product registration and access to test data. The high-performance lithium battery provides up to 96 hours of operational life, ensuring reliability under the harshest conditions. The AIS-based system also provides superior performance in bad weather with reduced susceptibility to interference from heavy rain or fog.

A 1-meter extendable telescopic pole can be attached for maximum height and visibility when deployed from a lifeboat, and the SART can be suspended inside the vessel for hands-free use.

Built to withstand the harshest marine environments, the S200 is a reliable partner in any emergency, ensuring that your distress signal reaches any AIS-equipped vessel within range. Its robust construction guarantees it is operational when you need it most!

The manual is only included in English!

Carriage Requirements:

All IMO SOLAS vessels on international voyages must carry a SART
300-500 gross tonnage (GRT) must have at least 1 SART
Over 500 gross tonnage (GRT) must have at least 2 SARTs
1 SART for every four life rafts on Ro-Ro passenger ships
Passenger ships of any size must have at least 2 SARTs regardless of their tonnage
Lifeboats: SOLAS requires at least 1 SART to be available for use in each survival craft
Life rafts: In the case of passenger ships, if there are more than 2 life rafts, there must be additional SARTs so that at least one SART is available for every 2 life rafts.
Specifications:

Size: 8.94 x 2.56 inches (227 mm x 65 mm)
Weight (SART and battery): 0.69 lbs (315 g)
Waterproof: 10 meters
Drop-proof (on water): 20 meters
Deployment: Manual
Frequency: 161.975/162.025 MHz
Transmit Power (EIRP): 1 watt +/- 3 dBm
Baud rate: 9600 baud
Synchronization: UTC
Messages: Message 1 (Position), Message 14 (Status)
Repetition interval: 8 messages/minute (message 14 is sent twice every 4 minutes)
Temperature range (operating): -20°C to +55°C
Temperature range (storage): -30°C to +70°C
Operational life: 96 hours at -20°C
Battery (type): Lithium/iron disulfide (Li/FeS2) – Non-hazardous
Battery (lithium metal weight): Less than 2 g per battery
Battery replacement interval: 5 years
NFC: Frequency 13.56 MHz
Compass safe distance: 1 meter
Test standards: IEC61097-14, IEC60945
IEC60945 Category: Portable
Approvals (pending): MED (MED/4.55), UK MER (MSN 1874), GMDSS regulations in Part 80 of FCC rules
Accessories (included): Bulkhead mounting bracket and mounting screws, attachment lanyard
Accessories (not included): Telescopic pole (1 m)
