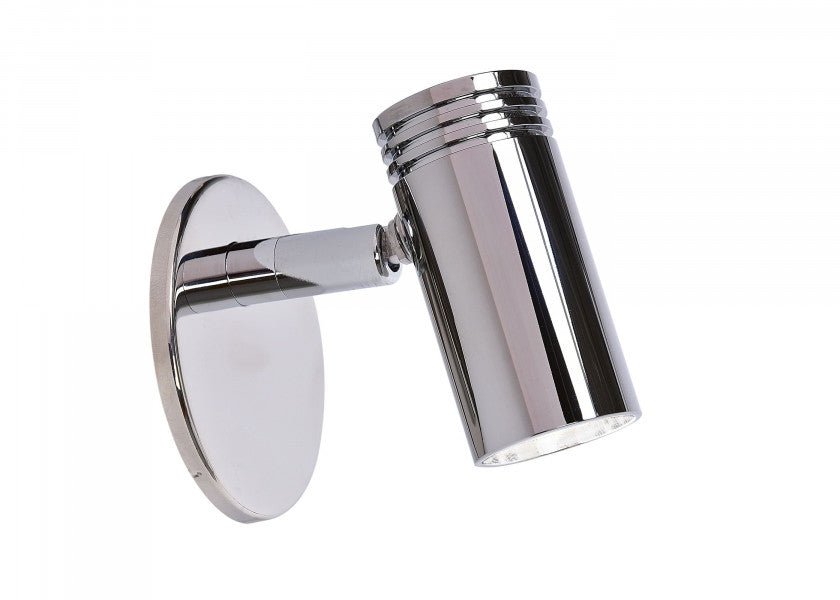

QUICK JACOB Wall Lamp
Item no. SS-11244
Giv den valgte del af båden et lys, der passer til brugen.
- Til belysning eller markering af det område, modellen er beregnet til.
- Bredde på basen: Maks. 95 mm
- Driftsspænding: 10-30V DC
- Strømforbrug: 0,21A @ 12V eller 0,11A @ 24V
What is included
Leveres som vist. Eventuelt tilbehør afhænger af modellen.
Technical details
| Bredde på basen | Maks. 95 mm |
|---|---|
| Driftsspænding | 10-30V DC |
| Strømforbrug | 0,21A @ 12V eller 0,11A @ 24V |
| Lysende effektivitet | 140 lumen |
| Wattage | <2.5W |
| Ramme-materiale | Aluminium |
| Lysets farve | Dagslys hvid (2900-3100 K) |
| Beskyttelsesklasse | IP40 |
| Dimensioner | 100 mm (dybde) / maks. 95 mm (højde) |
| Lampehoved | 34mm |
| Base Ø | 72 mm |
| Installation Ø | 20mm |
| Mærke | Quick |
| Kapslingsklasse | IP40 |
Installation and choosing accessories
Match spænding, monteringsmål, lysfarve og tæthed med placeringen. Indendørs lys er ikke automatisk egnet til åbent dæk.
Installation
Følg altid korrekt installationsvejledning og sørg for korrekt spænding og tilslutning.
Full product description
QUICK JACOB Wall Lamp is a quality solution for those who want reliable and efficient lighting on board.
The product is suitable for maritime environments where operational reliability and low power consumption are important. It is suitable for both new installations and upgrades.
⚡ Benefits
- Energy-efficient LED technology
- Suitable for marine environments
- Compact and functional design
- Easy installation
⛵ Suitable for
- Leisure boats
- Sailboats and motorboats
- Interior lighting
📊 Specifications
QUICK JACOB Wall Lamp from SVB24 is developed for use on board where you want reliable and functional lighting.
At SejlStrøm, we select marine lighting with a focus on low power consumption, easy mounting, and high operational reliability. This model is particularly suitable for mounting on bulkheads and wall surfaces in the boat's interior.
The JACOB wall lamp is made of chrome-plated aluminium and is compatible with 12 V and 24 V. It is equipped with a high-brightness LED. The lamp head can be rotated, allowing you to adjust the beam exactly where you need it.
Technical specifications
| Operating voltage: | 10-30V DC |
| Wattage: | <2.5W |
| Power consumption: | 0.21A @ 12V or 0.11A @ 24V |
| Frame material: | Aluminium |
| Light colour: | Daylight white (2900-3100 K) |
| Luminous efficacy: | 140 lumens |
| Protection class: | IP40 |
| Dimensions: | 100 mm (depth) / max. 95 mm (height) |
| Width of base: | Max. 95 mm |
| Lamp head: | 34mm |
| Base Ø: | 72 mm |
| Installation Ø: | 20mm |
🔧 Installation
Always follow the correct installation instructions and ensure proper voltage and connection.
📦 Package contents
Supplied as shown. Any accessories depend on the model.
💡 Tip from SejlStrøm
Combine with suitable cables and installation accessories for a complete solution.
