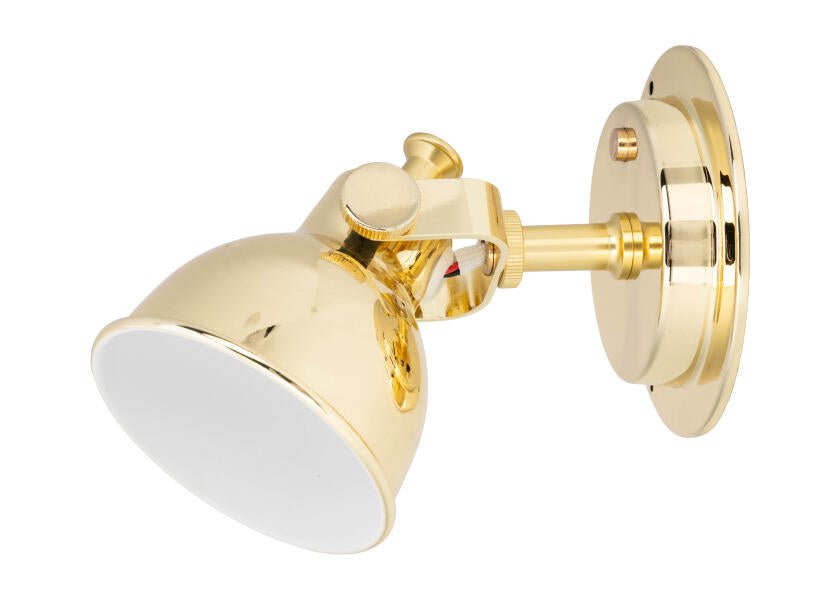

SEATEC LED reading light with dimmer – gold-plated aluminum
Item no. SS-11282
Giv kortbordet eller køjen et lys, du kan arbejde og læse ved.
- Retter lys mod et afgrænset område, hvor du har brug for det.
- Længde på kabel: 12 cm med åbne kabelender Tværsnit af kabel: 0,5 mm² eller 20 AWG
- Sokkelhøjde: 16,2 mm
- Spænding: 10 - 30 V JÆVNSTRØM
What is included
Leveres som vist. Eventuelt tilbehør afhænger af modellen.
Technical details
| Længde på kabel | 12 cm med åbne kabelender Tværsnit af kabel: 0,5 mm² eller 20 AWG |
|---|---|
| Foddiameter | 92 mm |
| Sokkelhøjde | 16,2 mm |
| Skærmdiameter | 78 mm |
| Spænding | 10 - 30 V JÆVNSTRØM |
| Strømforbrug (watt) | 3 W |
| Lysstofrør | LED (omtrentlig levetid på 30.000 timer) |
| Maks. Lysintensitet | 165 lm |
| Lysets temperatur | 3000 K |
| Maks. dimensioner (BxH) | 103 x 112 mm |
| Mærke | Seatec |
| Materiale | Aluminium |
Installation and choosing accessories
Kontrollér spænding, afbryder, lysfarve og fastgørelse; ekstra USB-funktion findes kun på angivne varianter.
Installation
Følg altid korrekt installationsvejledning og sørg for korrekt spænding og tilslutning.
Full product description
SEATEC LED reading light with dimmer / gold-plated aluminium is a high-quality solution for those who want reliable and efficient lighting on board.
The product is suitable for maritime environments where operational reliability and low power consumption are important. It is suitable for both new installations and upgrades.
⚡ Benefits
- Energy-efficient LED technology
- Suitable for marine environments
- Compact and functional design
- Easy installation
⛵ Suitable for
- Leisure boats
- Sailboats and motorboats
- Interior lighting
📊 Specifications
SEATEC LED reading light with dimmer / gold-plated aluminium from SVB24 is developed for use on board, where you want reliable and functional lighting.
At SejlStrøm, we select marine lighting with a focus on low power consumption, easy installation, and good operational reliability. This model is particularly suitable for bunks, chart tables, and focused work lighting.
This LED reading light from SEATEC has a modern design and provides a cozy feel in your rooms on board thanks to the warm white light color (3000 K) and has a classic design. The light can be dimmed by holding down the on/off switch. The reflector has a white coating on the inside, which provides a higher light output of 165 lumens with a power consumption of only 3 watts.
Technical specifications
| Light source | LED (approximate lifespan of 30,000 hours) |
| Voltage | 10 - 30 V DC |
| Power consumption (watt) | 3 W |
| Cable length | 12 cm with open cable ends Cable cross-section: 0.5 mm² or 20 AWG |
| Max. Light intensity | 165 lm |
| Light temperature | 3000 K |
| Base diameter | 92 mm |
| Base height | 16.2 mm |
| Shade diameter | 78 mm |
| Max. dimensions (WxH) | 103 x 112 mm |
🔧 Installation
Always follow the correct installation instructions and ensure proper voltage and connection.
📦 Package contents
Supplied as shown. Any accessories depend on the model.
💡 Tip from SejlStrøm
Combine with suitable cables and installation accessories for a complete solution.
