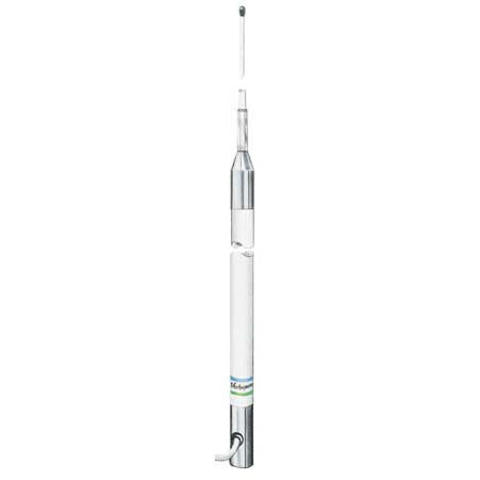

Shakespeare 399-1 VHF Antenna 6dB 2.9m
Item no. SHA-10028
The Shakespeare 399-1 VHF antenna at 2.9m with 6dB Gain is a professional-quality antenna that combines strength and performance. For use where you really need a large, high-performance antenna, but do not have much space. The antenna is a collinear 5/8-wave with two coaxial chokes to minimize cable loss. Overview: Brass and copper elements Chrome-plated brass base with standard 1" x 14 thread Includes 5m...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Shakespeare 399-1 VHF antenna at 2.9m with 6dB Gain is a professional-quality antenna that combines strength and performance. For use where you really need a large, high-performance antenna, but do not have much space. The antenna is a collinear 5/8-wave with two coaxial chokes to minimize cable loss.
Overview:
Brass and copper elements
Chrome-plated brass base with standard 1" x 14 thread
Includes 5m RG-58 antenna cable and PL-259 connector
Recommended mounting: "409-R" or "410-R" Mounting Kit for deck or side mounting (sold separately)
Can be shipped via UPS or similar
2 Sections: Base 1.9m; Tip 1m
Frequency range: VHF Marine (156 - 162MHz)
Antenna Gain: 6dB
Max. Input Power: 100 watts
SWR: nominally 1.5:1 @ 156.8 MHz
Bandwidth: 5MHz within 2.0:1 VSWR
Mount: Chrome-plated brass
Color / Finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: DC Grounded - The antenna will read shorted on continuity test.
Shakespeare Limited Warranty: 2 years
