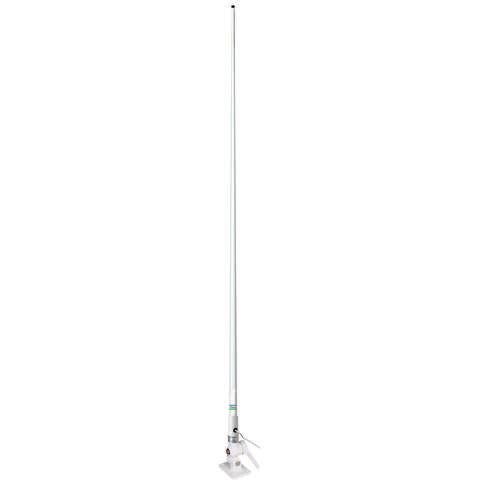

Shakespeare 427-N-Kit Fiberglass VHF Antenna w/ mount 3dB 1.5m
Item no. SHA-10020
Shakespeare 427-N-Kit fiberglass VHF antenna from V-Tronix with nylon mount, including a solid 4-way nylon ratchet mount.Ideal VHF antenna for smaller motorboats and workboats.The antenna, which is 1.5m high, features a white fiberglass finish and has a 1"-14 thread for standard mounts. Supplied with 6m of RG58 VHF cable with a PL259 VHF connector. Gain 3dB. Specifications Band: VHF Marine Band Antenna Gain: 3dB Max....
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Shakespeare 427-N-Kit fiberglass VHF antenna from V-Tronix with nylon mount, including a solid 4-way nylon ratchet mount.
Ideal VHF antenna for smaller motorboats and workboats.
The antenna, which is 1.5m high, features a white fiberglass finish and has a 1"-14 thread for standard mounts. Supplied with 6m of RG58 VHF cable with a PL259 VHF connector. Gain 3dB.
Specifications
Band:
VHF Marine Band
Antenna Gain:
3dB
Max. Input Power:
50 watts
SWR:
nominally 1.5:1 at 156.8 MHz
Bandwidth:
5 MHz within 2.0:1 VSWR
Ferrule:
Nylon
Coax Supplied:
6m (20 ft) of RG-58
Connector Supplied:
PL-259, not installed
Color/finish:
White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
Special - DC Grounded, but reads "open" on ohm meter
Shakespeare warranty: 2 years
