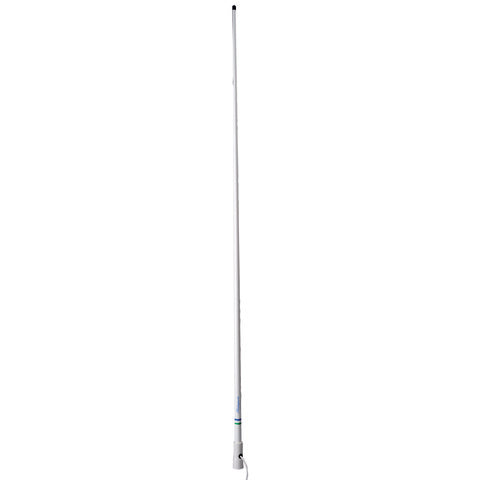

Shakespeare 427-N (RV120-P) VHF Antenna 3dB 1.5m
Item no. SHA-10019
Shakespeare 427-N fiberglass VHF antenna from V Tronix with nylon mount. Ideal VHF antenna for smaller motorboats and workboats. The antenna, which is 1.5m tall, features a white fiberglass surface and has a 1"14 thread for standard mounts. Supplied with 6m of RG58 VHF cable with PL259 VHF connector. Gain 3dB.(Formerly called RV-120-P) Specifications Band: VHF Marine Band Antenna Gain: 3dB Max. Input Power: 50...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Shakespeare 427-N fiberglass VHF antenna from V Tronix with nylon mount. Ideal VHF antenna for smaller motorboats and workboats. The antenna, which is 1.5m tall, features a white fiberglass surface and has a 1"14 thread for standard mounts. Supplied with 6m of RG58 VHF cable with PL259 VHF connector. Gain 3dB.
(Formerly called RV-120-P)
Specifications
Band:
VHF Marine Band
Antenna Gain:
3dB
Max. Input Power:
50 watts
SWR:
nominally 1.5:1 at 156.8 MHz
Bandwidth:
5 MHz within 2.0:1 VSWR
Ferrule:
Nylon
Coax Supplied:
6m (20 ft) of RG-58
Connector Supplied:
PL-259, not installed
Color/finish:
White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
Special - DC Grounded, but reads "open" on ohm meter
Shakespeare
Limited Warranty:
2 years
