Shakespeare 5101-S VHF Antenna 6dB 2.4m

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

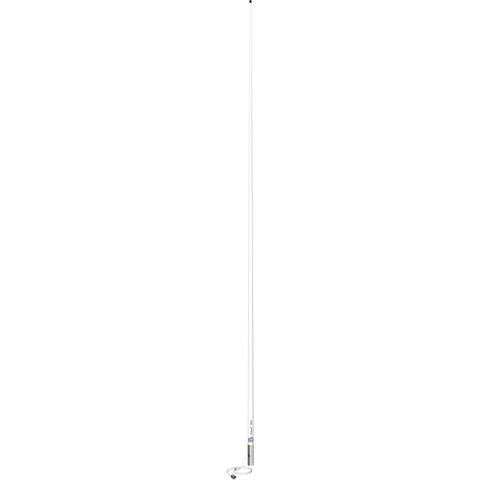

Shakespeare 5101-S Fiberglass VHF Antenna 2.4m with stainless steel mount, sets a new standard for elegant, economical antennas!
Shakespeare offers the best "high-end" details in a 2.4m antenna with brass elements in a smooth, high-gloss polyurethane finish that will not yellow in the sun.
Ideal for larger motorboats and smaller vessels.
This antenna not only provides you with good performance but also super value for money!
Supplied with 6m RG58 VHF cable and PL259 VHF connector. Gain 6dB.
(Previously called RV240)

Overview:

Brass and copper elements
Chrome-plated brass mount with standard 1" x 14 TPI thread
Supplied with 6m RG58 VHF cable and PL259 VHF connector
Recommended mounting: "4187" or "5187" ratchet mount (sold separately)
Beautiful, durable high-gloss finish
Frequency range: 156 - 162MHz
Gain: 6dB
V.S.W.R.: nom 1.5:1 @ 156.8 MHz
Length: 2.4m
Max input: 50 Watts

Centennial 5101 Specifications
Band:
VHF Marine Band
Antenna Gain:
6dB
Max. Input Power:
50 watts
SWR:
nominally 1.5:1 at 156.8 MHz
Bandwidth:
5 MHz within 2.0:1 VSWR
Ferrule:
Stainless Steel
Coax Supplied:
6m (20 ft) of RG-58
Connector Supplied:
PL-259, not installed
Color/finish:
White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
Special - DC Grounded, but reads "open" on ohm meter
Shakespeare Warranty:
2 years
