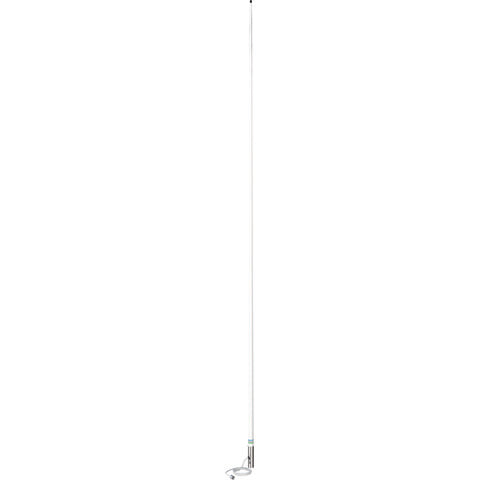

Shakespeare 5206-C Classic VHF Antenna 6dB 2.4m
Item no. SHA-10021
Shakespeare 5206-C Classic VHF Antenna is an economical and lightweight solution with good features, where range is not the dominant factor when choosing an antenna. Overview: Quality copper cable core for good range and efficiency Chrome-plated brass 1" 14 TPI thread mount 4.5m RG-58 antenna cable, which can be cut to length, incl. PL-259 connector Recommended mounting: Either "4187" or "5187" (sold separately) Great buy!...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Shakespeare 5206-C Classic VHF Antenna is an economical and lightweight solution with good features, where range is not the dominant factor when choosing an antenna.
Overview:
Quality copper cable core for good range and efficiency
Chrome-plated brass 1" 14 TPI thread mount
4.5m RG-58 antenna cable, which can be cut to length, incl. PL-259 connector
Recommended mounting: Either "4187" or "5187" (sold separately)
Great buy!
One section
Frequency range: 156 - 162 MHz
V.S.W.R.: nom 1.3:1 @ 156.8 MHz
Length: 2.4m
Max input: 50 Watts
Specifications
Band:
VHF Marine Band
Antenna Gain:
6dB
Max. Input Power:
50 watts
SWR:
nominally 1.3:1 at 156.8 MHz
Bandwidth:
5 MHz within 2.0:1 VSWR
Ferrule:
Chrome-plated brass
Coax Supplied:
4.6m (15 ft) of RG-58
Connector Supplied:
PL-259, not installed
Color/finish:
White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
No DC Ground - The antenna will read open on continuity test.
Shakespeare
Limited Warranty:
2 years
