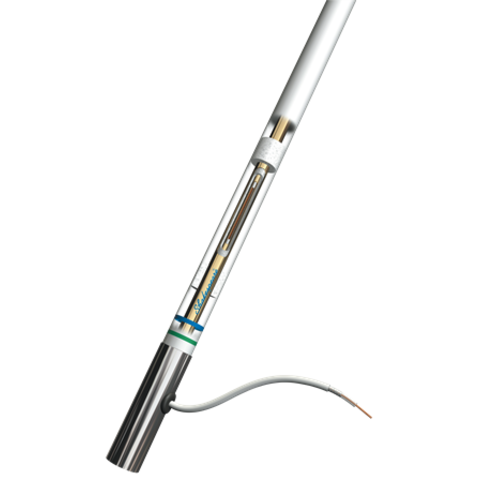

Shakespeare 5223-XT Galaxy 27MHz Antenna 2.4m
Item no. SHA-10058
Shakespeare 5223-XT Galaxy 27MHz CB antenna 2.4m is a solid, easy-to-install 27MHz CB antenna with top performance for demanding situations.The connector is included but not installed, so only a 3/8" hole is needed to pass the cable through.The coax length can be changed on this antenna. Stainless steel ferrule with standard 1"-14 threadIncludes 6.5m RG-8/X cable, which can be customized in length, and a PL-259...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Shakespeare 5223-XT Galaxy 27MHz CB antenna 2.4m is a solid, easy-to-install 27MHz CB antenna with top performance for demanding situations.
The connector is included but not installed, so only a 3/8" hole is needed to pass the cable through.
The coax length can be changed on this antenna.
Stainless steel ferrule with standard 1"-14 thread
Includes 6.5m RG-8/X cable, which can be customized in length, and a PL-259 connector
Suggested mount: Shakespeare Style 4187 or 5187 Ratchet Mount, or use a 409-R or 410-R Mounting Kit and a 5228 Extension Mast (sold separately) to create a 16' antenna system
Frequency: 27 MHz Citizens Band
End-Fed ½-Wave
Continuous-Load
Specifications:
Band:
27MHz CB Marine
Max. Input Power:
25 watts
SWR:
1.5:1 or less at Channel 19
Bandwidth:
440 kHz within 2.0:1 VSWR
Ferrule:
Stainless steel
Coax Supplied:
20 ft of RG-8/X
Connector Supplied:
PL-259, not installed
Color/finish:
Galaxy White
DC Ground:
DC Grounded – Will read shorted on continuity test.
Warranty:
5 years Galaxy
