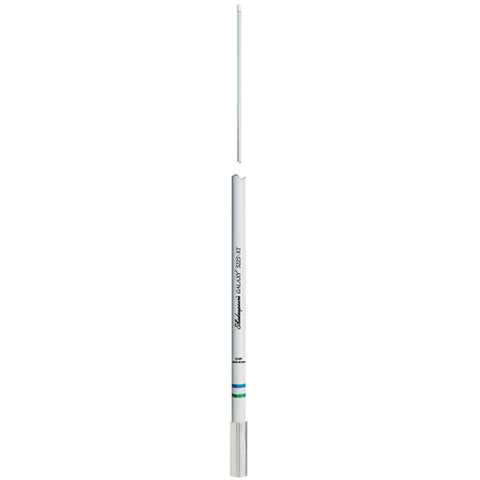

Shakespeare 5225-XT-AIS Galaxy AIS Antenna 2.4m 6dB
Item no. SHA-10128
Shakespeare's 5225-XT-AIS antenna in the Galaxy series is the unrivaled 2.4m AIS/VHF antenna with 6dB gain. Communicate in the best quality over the VHF/AIS band using the Galaxy 5225-XT-AIS, which is specially designed to meet the wider bandwidth requirements of AIS transceivers. The antenna is manufactured in a solid, high-quality fiberglass construction, ensuring performance and durability. These advantages, combined with the beautiful Galaxy high-gloss finish,...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
Shakespeare's 5225-XT-AIS antenna in the Galaxy series is the unrivaled 2.4m AIS/VHF antenna with 6dB gain.
Communicate in the best quality over the VHF/AIS band using the Galaxy 5225-XT-AIS, which is specially designed to meet the wider bandwidth requirements of AIS transceivers. The antenna is manufactured in a solid, high-quality fiberglass construction, ensuring performance and durability. These advantages, combined with the beautiful Galaxy high-gloss finish, make it the best antenna for the purpose.
Overview:
Brass and copper elements
High-gloss, non-yellowing polyurethane finish
Stainless steel ferrule with 1"- 14 threads
Includes 6m of RG-8/X "Low-Loss" cable and a PL-259 connector
Suggested mount: 4187 or 5187
Specifications:
Band:
VHF/AIS Marine Band
Antenna Gain:
6dB
Max. Input Power:
100 watts
SWR:
Nominally 1.5:1 at 158.6 MHz
Bandwidth:
3 MHz within 2.0:1 VSWR
Ferrule:
Stainless steel
Coax Supplied:
20 ft of RG-8/X
Connector Supplied:
PL-259, not installed
Color/finish:
Galaxy White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
DC Grounded – The antenna will read shorted on continuity test.
Shakespeare
Limited Warranty:
5 years
