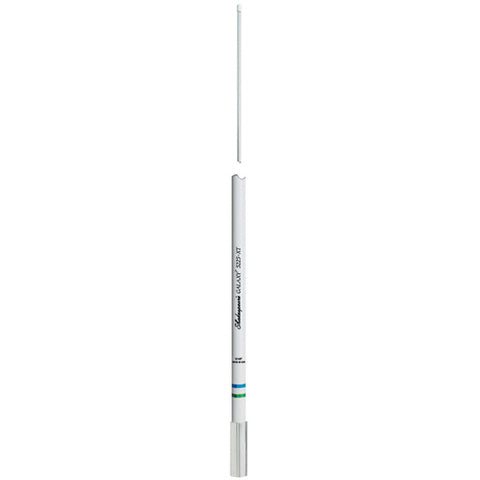

Shakespeare 5225-XT VHF Antenna 6dB 2.4m
Item no. SHA-10025
The Shakespeare 5225-XT VHF Antenna is the classic of the Galaxy series in a new, stronger, and stiffer casing.Shakespeare's best - maximizes range and quality in an attractive antenna.It is extra robust for use on arches and superstructures where extra strength in strong winds and high speeds is welcome. (Also available in black, no.: 5226-XT) Overview: Gain: 6dB Length: 2.4m Max. Input Power: 100 watts...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Shakespeare 5225-XT VHF Antenna is the classic of the Galaxy series in a new, stronger, and stiffer casing.
Shakespeare's best - maximizes range and quality in an attractive antenna.
It is extra robust for use on arches and superstructures where extra strength in strong winds and high speeds is welcome. (Also available in black, no.: 5226-XT)
Overview:
Gain: 6dB
Length: 2.4m
Max. Input Power: 100 watts
SWR: nominally 1.5:1 @ 156.8 MHz
Bandwidth: 3 MHz at 2.0:1 VSWR
Polarity: Vertical
Collinear-phased 5/8-wave
Impedance: 50 Ohms
DC grounded
Brass and copper components for maximum range and efficiency
Stainless steel mount with standard 1”-14 thread
6m RG-8/X low-loss cable and PL-259 connector
Suggested mount: Shakespeare Style 4187 or 5187 (sold separately)
Warranty: 5 years
Specifications
Band:
VHF Marine Band
Antenna Gain:
6dB
Max. Input Power:
100 watts
SWR:
nominally 1.5:1 at 156.8 MHz
Bandwidth:
3 MHz within 2.0:1 VSWR
Ferrule:
Stainless steel
Coax Supplied:
6m (20 ft) of RG-8/X
Connector Supplied:
PL-259, not installed
Color/finish:
Galaxy White
Polarity:
Vertical
Impedance:
50 Ohms
DC Ground:
DC Grounded - The antenna will read shorted on continuity test.
Shakespeare
Limited Warranty:
5 years
