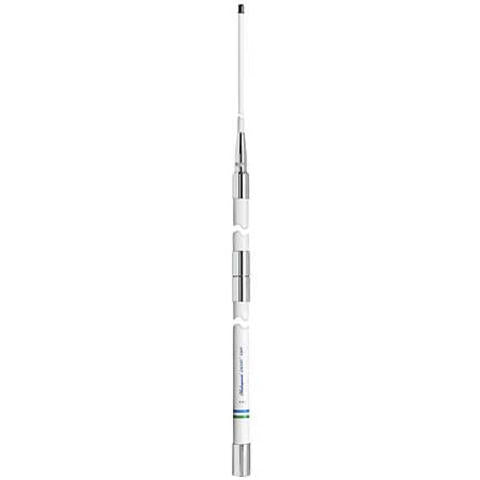

Shakespeare 5309-R Galaxy VHF Antenna 7m 9dB
Item no. SHA-10033
The Shakespeare 5309-R Galaxy is a 1/2-wave phased collinear VHF antenna with performance beyond the ordinary. Specifically designed for long-distance communication. Every trick in the antenna engineering book has been used in the design of this antenna to achieve the clearest and best transmission and reception capabilities. Specifications: Brass and copper elements for maximum performance and range Stainless steel mount with standard 1" x 14...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Shakespeare 5309-R Galaxy is a 1/2-wave phased collinear VHF antenna with performance beyond the ordinary. Specifically designed for long-distance communication. Every trick in the antenna engineering book has been used in the design of this antenna to achieve the clearest and best transmission and reception capabilities.
Specifications:
Brass and copper elements for maximum performance and range
Stainless steel mount with standard 1" x 14 thread
Recommended mounting: 409-R or 410-R mounting kit for deck or side mounting
6m "Low-Loss" RG-8/X antenna cable
Length: 7m
2 sections: Base 4.37m; Tip 2.67m
Frequency range: VHF Marine Band, 156 - 162MHz
Gain: 9dB
Max. Input Power: 150 Watts
SWR: nominally 1.5:1 @ 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Color/finish: Galaxy White - will not yellow
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground - The antenna will read open on continuity test
Shakespeare Limited Warranty: 5 years
