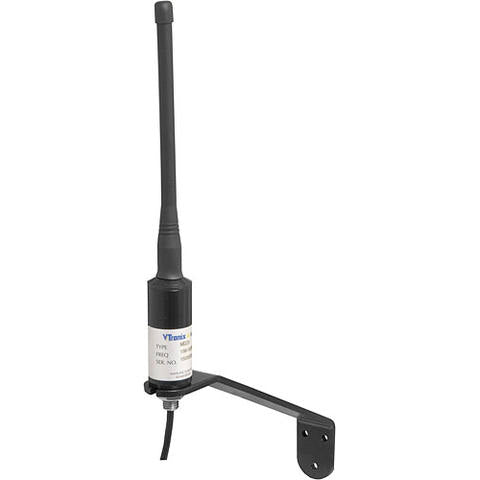

Shakespeare MD23 V-Tronix Flexible VHF Antenna, 1dB
Item no. SHA-10005
The MD 23 VHF antenna is a compact short antenna measuring only 31cm. The antenna can be used by sailboats and RIBs for short-range communication. The MD 23 is incredibly robust, has low wind resistance, and is supplied with 20m of RG58 VHF cable, a PL259 connector, and an 18cm mount for mast or console installation. The antenna, which is molded and flexible, has a...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The MD 23 VHF antenna is a compact short antenna measuring only 31cm. The antenna can be used by sailboats and RIBs for short-range communication. The MD 23 is incredibly robust, has low wind resistance, and is supplied with 20m of RG58 VHF cable, a PL259 connector, and an 18cm mount for mast or console installation. The antenna, which is molded and flexible, has a gain of 3dB.
Low profile
Low wind resistance
Discreet
Does not require a ground plane
3dB Gain
31cm high
300g
180mm mast bracket
MD23 Antenna Specifications
Frequencies
156-162 MHz: VHF marine band
V.S.W.R.
1.5:1 at resonance
Gain
3 dBi
Height
0.31 m
Weight
0.3 kg
Sections
1
