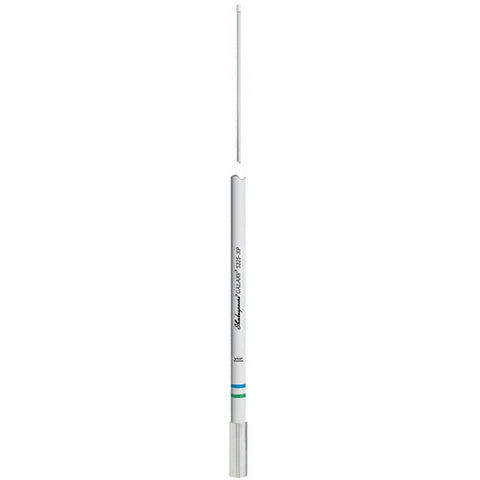

Shakespeare 5225-XP Galaxy VHF Antenna 6dB 2.4m
Item no. SHA-10027
The Shakespeare 5225-XP Galaxy is the best VHF antenna when you need to be heard! This 2.4m antenna features silver-plated elements. It meets even the strictest requirements and demands. Perfect for mounting on radar arches and hardtop boats. Delivers maximum range and will not yellow in the sun. The silver-plated elements provide extra advantages for general communication use. Recommended for work vessels, fishing boats, motorboats,...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Shakespeare 5225-XP Galaxy is the best VHF antenna when you need to be heard! This 2.4m antenna features silver-plated elements. It meets even the strictest requirements and demands. Perfect for mounting on radar arches and hardtop boats. Delivers maximum range and will not yellow in the sun. The silver-plated elements provide extra advantages for general communication use. Recommended for work vessels, fishing boats, motorboats, and larger sailboats.
Overview:
Gain: 6dB
Length: 2.4m
Max. Input Power: 150 watts
SWR: nominal 1.5:1 @ 156.8 MHz
Bandwidth: 3 MHz at 2.0:1 VSWR
Collinear-phased 5/8-wave
Polarity: Vertical
Impedance: 50 Ohms
DC grounded
Copper and silver-plated brass elements for extra range and efficiency
Stainless steel mount with standard 1”-14 thread
6m RG-8/X low-loss cable and PL-259 connector
Low-loss components
High-quality tinned copper inner conductor maximizes signal strength
Ultra-efficient, silver-plated brass bushing suppresses cable loss for maximum signal.
Suggested mounting: Shakespeare Style 4187 or 5187 (sold separately)
Warranty: 5 Years
