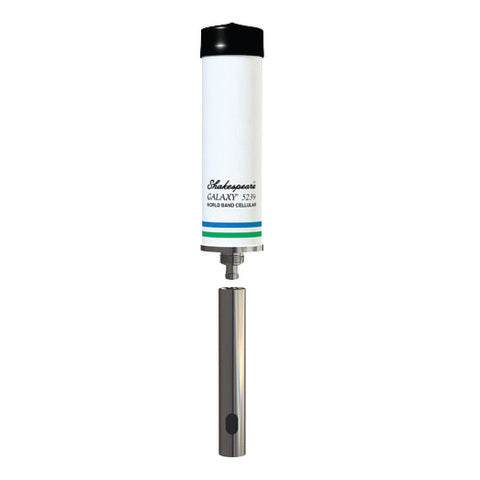

Shakespeare 5239 Galaxy Antenna Mobile Broadband Wi-Fi 23.5cm
Item no. SHA-10059
The Shakespeare 5239 Galaxy antenna is the smallest Galaxy antenna, but don't let its size fool you.This "World-Band" antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS, and LTE frequencies as well as 802.11n Wi-Fi.This compact, versatile antenna is for use on virtually any vessel and is equipped with a stainless steel ferrule with an N-connector that is compatible with almost all...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Shakespeare 5239 Galaxy antenna is the smallest Galaxy antenna, but don't let its size fool you.
This "World-Band" antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS, and LTE frequencies as well as 802.11n Wi-Fi.
This compact, versatile antenna is for use on virtually any vessel and is equipped with a stainless steel ferrule with an N-connector that is compatible with almost all Shakespeare 1"-14 threaded mounting brackets.
Specifications:
"Full Band" (698-2700 MHz) Broadband
2G/3G/4G/(initial 5G) and WLAN systems
Wi-Fi 802.11n compatible
Designed for marine use
Omni-directional antenna 3-4dB Gain.
Easy to install!
Frequency: 698-960 / 1700-2700 MHz
Input Impedance: 50 ohms
Antenna Gain: 2-3dB @ 698-960 / 3-4dB @ 1700-2700MHz
VSWR: ≤ 1.8
Power: 10W
Polarization Type: Vertical
Radiation: Omni-directional
Maximum input: 100W
Connector Type: N-Connector (female)
Dimensions: H: 23cm" x Ø: 6.5cm
Color: White
Operating temperature: (F) -22° to +176°
Mounting thread: 1"x 14 thread
Ground plane: Internal
Material: Fiberglass
Recommended mounting bracket: 4710 or 4190
