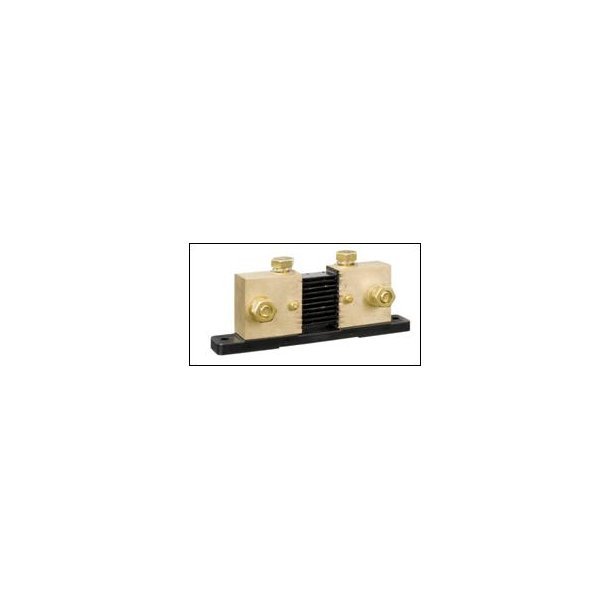

Victron Shunt 1000A/50mV

Item no. VIC-10146

Victron Shunt 1000A/50mV

Få et bedre grundlag for at følge strømforbruget om bord.

  • Indgår i måling eller visning af batteriets strømforbrug og tilstand.
  • Vægt: ca. 1.2 – 1.3 kg
  • Maks. strøm: 1000 A
  • Angivet strømstyrke: 1000 A
Price each
609,95 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details
Vægtca. 1.2 – 1.3 kg
Maks. strøm1000 A
Angivet strømstyrke1000 A
Angivet strøm1000A
SpecifikationData
ProduktShunt 1000A/50mV
Signal50 mV
TerminalM10
Modstandca. 0.05 mΩ
Dimensionerca. 68 × 168 × 75 mm
AnvendelseStrømmåling / batterimonitor
MærkeVictron
Installation and choosing accessories

Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.

Full product description

Powerful precision shunt for measuring high current in battery systems.

The Victron Shunt 1000A/50mV is a high-precision measuring resistor used with compatible BMV battery monitors configured for the shunt's current and voltage rating. It allows for highly accurate measurement of power consumption and charging.

The shunt is mounted on the battery negative terminal and acts as the actual measuring point in the system.

⚡ Benefits

  • 1000A shunt for high-current installations

  • Precise measurement of current and consumption

  • Used with Victron battery monitors

  • Robust construction for demanding environments

  • Low resistance – minimal energy loss

  • Standard 50mV signal (compatible with many systems)

A shunt is the very "heart" of battery monitoring.

⛵ Suitable for

  • Boat and marine installations

  • Motorhomes and vans

  • Solar panel setups and off-grid systems

  • High-current installations (inverters, battery banks)

📊 Specifications

Specification Data
Product Shunt 1000A/50mV
Max. current 1000 A
Signal 50 mV
Terminal M10
Resistance approx. 0.05 mΩ
Dimensions approx. 68 × 168 × 75 mm
Weight approx. 1.2 – 1.3 kg
Application Current measurement / battery monitor

🔧 Installation

The shunt is typically installed:

  • On the battery negative

  • Between the battery and load/charger

  • Together with a compatible BMV battery monitor with correct shunt settings

  • With correctly dimensioned cables

⚠️ All negative connections must go through the shunt for accurate measurement.

📦 Package contents

  • 1 × Victron Shunt 1000A/50mV

💡 Tip from SejlStrøm:
If you are building larger systems, it is important to choose the correct shunt size. 1000A is perfect for larger inverters and high-power lithium setups 👍
