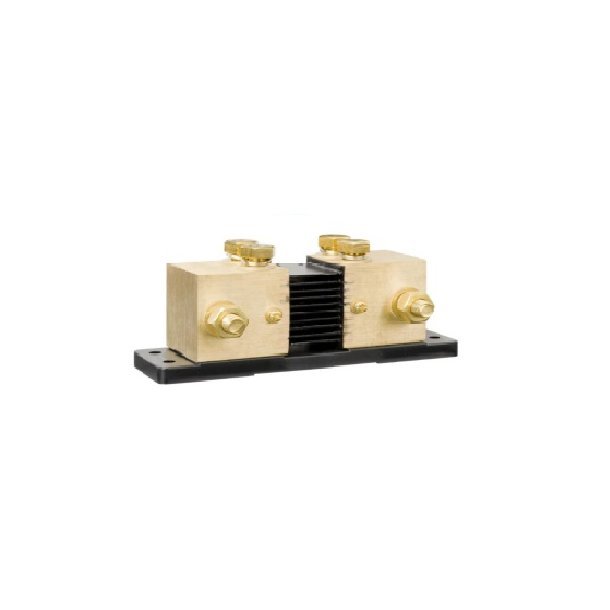

Victron Shunt 2000A/50mV

Item no. VIC-10144

Victron Shunt 2000A/50mV

Få et bedre grundlag for at følge strømforbruget om bord.

  • Indgår i måling eller visning af batteriets strømforbrug og tilstand.
  • Vægt: ca. 2.2 – 2.3 kg
  • Maks. strøm: 2000 A
  • Angivet strømstyrke: 2000 A
Price each
969,95 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details
Vægtca. 2.2 – 2.3 kg
Maks. strøm2000 A
Angivet strømstyrke2000 A
Angivet strøm2000A
SpecifikationData
ProduktShunt 2000A/50mV
Signal50 mV
Nøjagtighedca. ±0,5 %
Terminal3 × M10
Modstandca. 0.025 mΩ
Dimensionerca. 168 × 80 × 50 mm
AnvendelseStrømmåling / batterimonitor
MærkeVictron
Installation and choosing accessories

Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.

Full product description

Extremely powerful precision shunt for measuring high current in large battery systems.

The Victron Shunt 2000A/50mV is a high-precision measuring resistor used in conjunction with battery monitors like the BMV series or other compatible systems. It enables power consumption and charging to be measured with great accuracy – even in very large installations.

The shunt is mounted on the battery's negative terminal and acts as the central measuring point in the system.

⚡ Benefits

  • 2000A shunt for very large installations

  • Precise measurement of current and energy use

  • Standard 50mV signal (wide compatibility)

  • Robust construction for demanding environments

  • Low resistance – minimal energy loss

  • Suitable for professional and heavy-duty systems

A shunt is the very foundation for accurate battery monitoring.

⛵ Suitable for

  • Large boats and marine installations

  • High-power inverter setups (5kW+)

  • Off-grid systems with high loads

  • Industrial and professional energy systems

📊 Specifications

Specification Data
Product Shunt 2000A/50mV
Max. current 2000 A
Signal 50 mV
Accuracy approx. ±0.5 %
Terminal 3 × M10
Resistance approx. 0.025 mΩ
Dimensions approx. 168 × 80 × 50 mm
Weight approx. 2.2 – 2.3 kg
Application Current measurement / battery monitor

🔧 Installation

The shunt is typically installed:

  • On the battery negative

  • Between the battery and all loads/chargers

  • Together with a battery monitor (BMV or similar)

  • With correctly sized cables (very important at 2000A)

⚠️ All negative connections must pass through the shunt for accurate measurement.

📦 Package contents

  • 1 × Victron Shunt 2000A/50mV

💡 Tip from SejlStrøm:
2000A is only for very large setups. If you are not at that level, it is better (and cheaper) to choose 500A or 1000A – but here, you are covered for EVERYTHING 👍
