SILVA 102B/H Challenger
Item no. SIL-10004
The Silva 102B/H Challenger is a bulkhead-mounted compass designed for sailboats and sailors who require absolute accuracy and a stable compass card under all conditions, including heeling angles. The compass features large, easy-to-read numbers and 45° lubber lines for easy reading from the side. The compass dome protrudes only 56mm from the bulkhead. The compass is equipped with a heeling angle scale, illumination, and the...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description

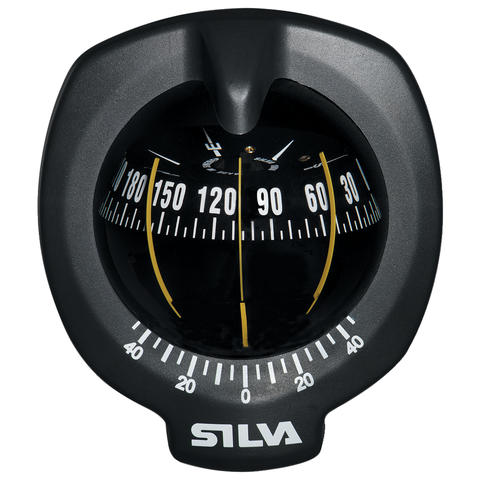

The Silva 102B/H Challenger is a bulkhead-mounted compass designed for sailboats and sailors who require absolute accuracy and a stable compass card under all conditions, including heeling angles. The compass features large, easy-to-read numbers and 45° lubber lines for easy reading from the side. The compass dome protrudes only 56mm from the bulkhead. The compass is equipped with a heeling angle scale, illumination, and the option to compensate for magnetic interference, and is supplied with a black housing.
(Replaces Plastimo Contest 100 & 101)
SPECIFICATIONS:
ARTICLE NUMBER
Silva: 37198-0011 / Scanmarine: SV-102BH
ACCURACY
± 0,5° (8.9 mils)
APPARENT CARD DIAMETER
100mm
BUILT-IN COMPENSATOR
Optional
COMPATIBILITY
Sailboats
DIMENSIONS
85x135x105mm
GIMBALLED CRADLE
Yes
HEELING ANGLE
Roll: 45° Pitch: 30°
HEELING ANGLE SCALE
Yes
ILLUMINATION
12V., Red
LUBBER LINES
Centre and 2x side view at 45°
MATERIAL
ABS, Acrylic
MEMORY RING
No
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
900g
