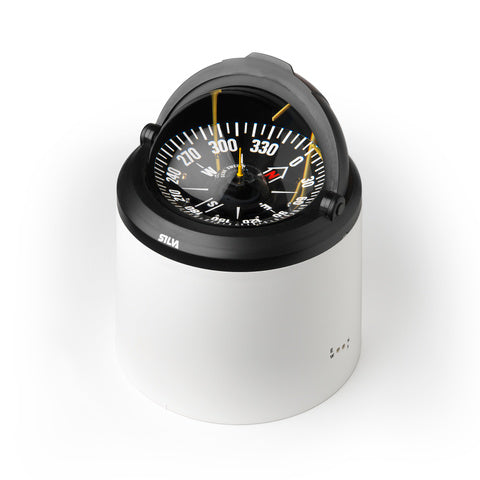

SILVA 125T Pedestal Compass
Item no. SIL-10000
The Silva 125T pedestal compass is designed for boats and sailors requiring absolute accuracy and a stable compass card under all conditions and heeling angles. It is flush-mounted in the pedestal, with a visible scale of 125 mm and a gimballed cradle. A compensator allows for the correction of magnetic interference, and there is integrated illumination in the adjustable protective cover for ideal night vision,...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Silva 125T pedestal compass is designed for boats and sailors requiring absolute accuracy and a stable compass card under all conditions and heeling angles.
It is flush-mounted in the pedestal, with a visible scale of 125 mm and a gimballed cradle.
A compensator allows for the correction of magnetic interference, and there is integrated illumination in the adjustable protective cover for ideal night vision, as well as lubber lines that remain vertical even in heavy seas. The elevated center needle eliminates reading errors and facilitates steering from the side of the compass.
SPECIFICATIONS:
ARTICLE NUMBER
37199-0011
ACCURACY
± 0.5° (8.9 mils)
APPARENT CARD DIAMETER
125mm
BUILT-IN COMPENSATOR
Yes
CARD TYPE
Flat
COMPATIBILITY
Powerboats, Sailboats
DIMENSIONS
124mm diameter
GIMBALLED CRADLE
Yes
HEELING ANGLE
Roll: 45° Pitch: 30°
HEELING ANGLE SCALE
No
ILLUMINATION
12V., Red
LUBBER LINES
Centre and 2x side view at 45°
MATERIAL
ABS, Acrylic
MEMORY RING
No
MOUNTING
Pedestal
MOUNTING ANGLE
-10° to +10°
PROTECTIVE COVER
Yes
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
1900g
