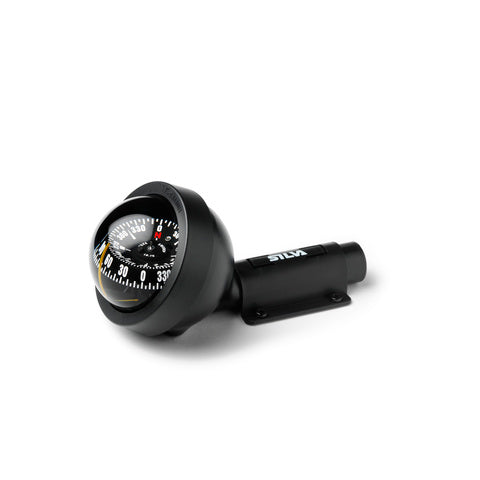

Silva 70UN universal compass
Item no. SIL-10012
The Silva 70UN is a universal compass that can be mounted at any angle on board. The compass can be removed from its bracket and used as a handheld compass, or taken home to prevent theft. 360° white compass card, 40° lubber line. Suitable for all small boats, ideal as a spare compass. With a main compass scale on the horizontal part and for direct...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Silva 70UN is a universal compass that can be mounted at any angle on board. The compass can be removed from its bracket and used as a handheld compass, or taken home to prevent theft. 360° white compass card, 40° lubber line. Suitable for all small boats, ideal as a spare compass.
With a main compass scale on the horizontal part and for direct reading on the vertical edge.
The 70UN is ideal for boats with either a seated or standing helmsman. The curved lubber line allows for quick and clear reading without errors. If the compass falls into the water - it floats!
Suitable for smaller boats, kayaks, dinghies, canoes, and many more...
SPECIFICATIONS:
ARTICLE NUMBER:
Silva: 35014-9011 / Scanmarine: SV-70UN
ACCURACY
± 1° (17.8 mils)
APPARENT CARD DIAMETER
70mm (2.7 inch)
BUILT-IN COMPENSATOR
Optional
CARD TYPE
Cone
COMPATIBILITY
Kayaks, Powerboats, Sailboats, Universal
DIMENSIONS
86x175mm
GIMBALLED CRADLE
No
HEELING ANGLE
Roll: 30° Pitch: 360°
HEELING ANGLE SCALE
No
ILLUMINATION
No
MATERIAL
ABS, Acrylic
MEMORY RING
No
MOUNTING
Bracket, Handheld
MOUNTING ANGLE
Any
PROTECTIVE COVER
No
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
405g
