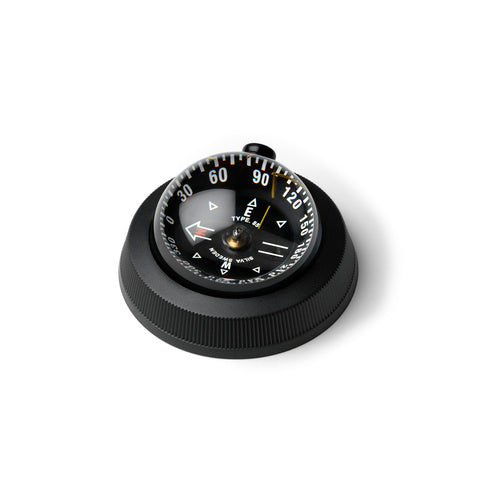

Silva 85E Compass
Item no. SIL-10009
The Silva 85E Compass is a practical, small flush-mount compass for smaller motorboats and sailboats, which is also suitable for night navigation thanks to its integrated lighting. No large holes are required for installation. The Silva 85E compass is a stable compass for small, fast boats. It features 45-degree lubber lines for reading the course. The clear compass scale and quick readability make this compass...
Technical details
Your selected configuration: Standard
Contact me with the item number if you need more technical information about this product.
Full product description
The Silva 85E Compass is a practical, small flush-mount compass for smaller motorboats and sailboats, which is also suitable for night navigation thanks to its integrated lighting. No large holes are required for installation.
The Silva 85E compass is a stable compass for small, fast boats. It features 45-degree lubber lines for reading the course.
The clear compass scale and quick readability make this compass perfect for high-speed navigation. The flat base design allows for "flush" installation without requiring large holes in the boat. Thanks to the excellent damping of the compass card, the Silva 85E is well-suited for high speeds and harsh conditions.
SPECIFICATIONS:
ARTICLE NUMBER
Silva: 37174-0011 / Scanmarine: SV-85E
ACCURACY
± 1° (17.8 mils)
APPARENT CARD DIAMETER
85mm
BUILT-IN COMPENSATOR
No
CARD TYPE
Flat
COMPATIBILITY
Powerboats, Sailboats
DIMENSIONS
67x120mm
GIMBALLED CRADLE
No
HEELING ANGLE
Roll: 30° Pitch: 30°
HEELING ANGLE SCALE
No
ILLUMINATION
12V., Red
LUBBER LINES
Centre and 2x side view at 45°
MATERIAL
ABS, Acrylic
MEMORY RING
Yes
MOUNTING
Flush
MOUNTING ANGLE
-20° to +20°
PROTECTIVE COVER
No
TEMPERATURE OPERATING RANGE
-10°C to +70°C
VARIANT
Magnetic Equator, Magnetic South, Magnetic North
WEIGHT
300g
