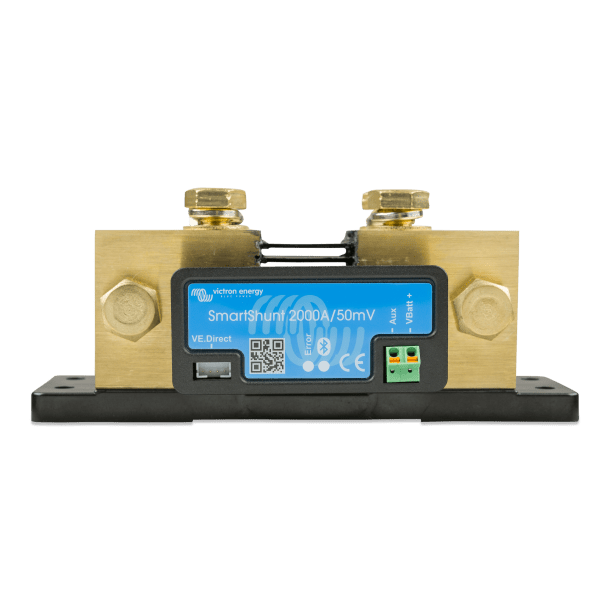

Victron SmartShunt 2000A/50mV
Item no. VIC-10127
Get a better basis for monitoring power consumption on board.
- Used to measure or display battery power consumption and condition.
- Measurements: Voltage, current, SOC
- Weight: approx. 2.2 – 2.5 kg
- Voltage range: 6.5 – 70 V DC
Technical details
| Measurements | Voltage, current, SOC |
|---|---|
| Weight | approx. 2.2 – 2.5 kg |
| Voltage range | 6.5 – 70 V DC |
| Rated current | 2000 A |
| Rated current | 2000A |
| Specification | Data |
| Product | SmartShunt 2000A/50mV |
| Shunt | 2000A / 50mV |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temperature/midpoint) |
| Dimensions | 68 × 168 × 75 mm |
| Terminal | M10 |
| Application | Battery monitoring |
| Model series | SmartShunt |
| Brand | Victron |
| Connections | Bluetooth |
Installation and choosing accessories
Match the shunt, instrument, current level and wiring. Displaying state of charge requires correct setup and calibration.
Full product description
Extremely powerful battery monitor for large energy systems.
The Victron SmartShunt 2000A is an advanced battery monitor that measures voltage, current, and battery state of charge (SOC) with high precision. Instead of a physical display, it uses Bluetooth so you can track all data directly in the VictronConnect app.
With a full 2000A capacity, this model is designed for large installations with very high current – e.g., powerful inverters, large lithium banks, and professional systems.
⚡ Advantages
-
2000A battery monitor for very large systems
-
Bluetooth – monitoring via VictronConnect
-
Displays SOC, voltage, current, and history
-
VE.Direct for GX integration
-
Auxiliary input for battery / temperature / midpoint
-
High precision and reliability
-
Compact solution without a display
The SmartShunt is a modern replacement for the BMV – just without a display.
⛵ Suitable for
-
Large boats and marine installations
