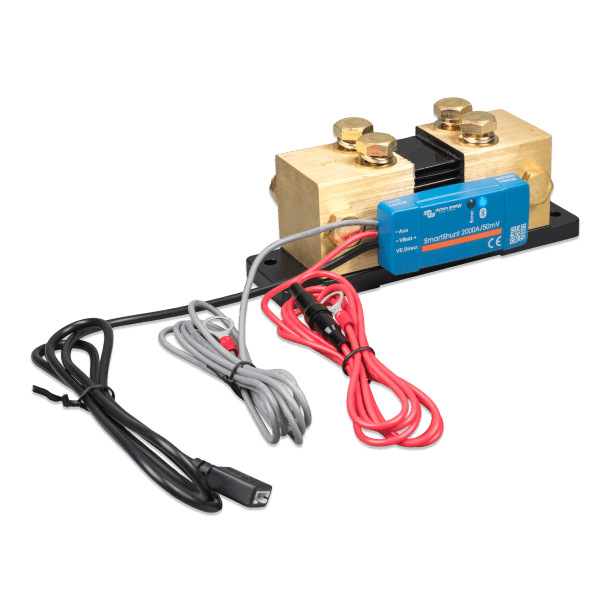

Victron SmartShunt 2000A/50mV IP65
Item no. VIC-10141
Get a better basis for monitoring power consumption on board.
- Used to measure or display battery power consumption and condition.
- Measurements: Voltage, current, SOC
- Weight: approx. 2.2 – 2.5 kg
- Voltage range: 6.5 – 70 V DC
Technical details
| Measurements | Voltage, current, SOC |
|---|---|
| Weight | approx. 2.2 – 2.5 kg |
| Voltage range | 6.5 – 70 V DC |
| Rated current | 2000 A |
| Rated current | 2000A |
| Specification | Data |
| Product | SmartShunt 2000A/50mV IP65 |
| Shunt | 2000A / 50mV |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temperature/midpoint) |
| IP rating | IP65 |
| Dimensions | 68 × 168 × 100 mm |
| Terminal | M10 |
| Application | Battery monitoring |
| Ingress protection rating | IP65 |
| Model series | SmartShunt |
| Brand | Victron |
Installation and choosing accessories
Match the shunt, instrument, current level and wiring. Displaying state of charge requires correct setup and calibration.
Full product description
Extremely powerful battery monitor – for large systems and high loads.
The Victron SmartShunt 2000A IP65 is an advanced battery monitor that provides precise measurements of current, voltage, and the battery's state of charge (SOC). Instead of a display, you use Bluetooth via the VictronConnect app, where you get a full overview in real time.
With a full 2000A capacity, this model is designed for large installations with high current – e.g., powerful inverters, large lithium banks, and professional systems.
⚡ Benefits
-
2000A battery monitor for large systems
-
IP65 – water and dust resistant
-
Bluetooth – monitoring via VictronConnect
-
Displays SOC, voltage, current, and history
-
VE.Direct for GX integration
-
Additional input for battery / temperature / midpoint
-
Extreme precision
The SmartShunt is a modern replacement for the BMV – just without a display.
⛵ Suitable for
-
Large boats and marine installations
-
High-power inverter setups
-
Off-grid systems with high loads
-
Professional energy systems
📊 Specifications
| Specification | Data |
|---|---|
| Product | SmartShunt 2000A/50mV IP65 |
| Measurement | Voltage, current, SOC |
| Shunt | 2000A / 50mV |
| Voltage range | 6.5 – 70 V DC |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temp/midpoint) |
| IP rating | IP65 |
| Dimensions | 68 × 168 × 100 mm |
| Weight | approx. 2.2 – 2.5 kg |
| Terminal | M10 |
| Application | Battery monitoring |
🔧 Installation
The unit is typically installed:
-
Mounted on the battery negative via shunt
-
Dimensioned for high current (large cables)
-
Configured via the VictronConnect app
-
Potentially connected to a GX system
📦 Package contents
-
1 × Victron SmartShunt 2000A IP65
-
Connection cables
💡 Tip from SejlStrøm:
2000A is not a “normal setup” – it is for large systems. If you are running an inverter of 3–5kW+ or large lithium banks, then this is the right solution 👍
