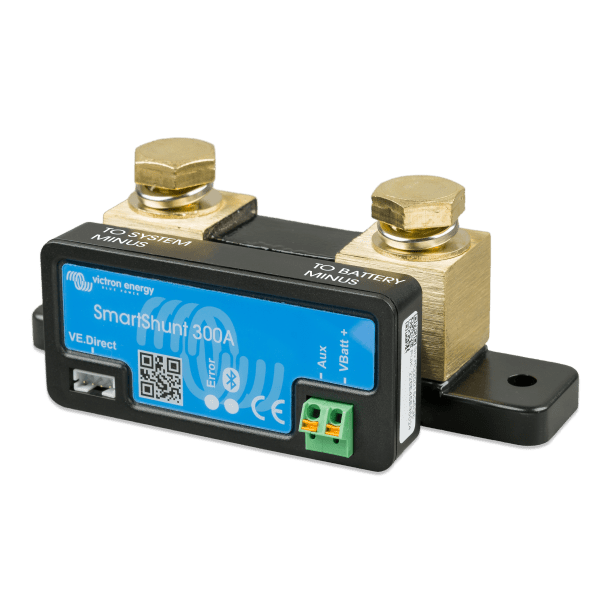

Victron SmartShunt 300A
Item no. VIC-10143
Get a better basis for monitoring power consumption on board.
- Used to measure or display battery power consumption and condition.
- Measurements: Voltage, current, SOC
- Weight: approx. 0.4 kg
- Voltage range: 6.5 – 70 V DC
Technical details
| Measurements | Voltage, current, SOC |
|---|---|
| Weight | approx. 0.4 kg |
| Voltage range | 6.5 – 70 V DC |
| Rated current | 300 A |
| Rated current | 300A |
| Specification | Data |
| Product | SmartShunt 300A |
| Shunt | 300A / 50mV |
| Bluetooth | Yes |
| Additional input | Yes (battery/temperature) |
| Communication | VE.Direct |
| Dimensions | approx. 120 × 46 × 54 mm |
| Application | Battery monitoring |
| Model series | SmartShunt |
| Brand | Victron |
Installation and choosing accessories
Match the shunt, instrument, current level and wiring. Displaying state of charge requires correct setup and calibration.
Full product description
Advanced battery monitor without display – everything directly on your mobile.
The Victron SmartShunt 300A is an intelligent battery monitor that measures voltage, current, and the battery's state of charge (SOC) with high precision. Instead of a physical display, it uses Bluetooth, allowing you to follow all data directly in the VictronConnect app.
It is a modern and space-saving solution that provides the same functionality as the BMV series – just without a display.
⚡ Benefits
-
High-precision 300A battery monitor
-
Bluetooth – monitoring via VictronConnect
-
Shows SOC, voltage, current, and consumption
-
Easy installation without display
-
Extra input for 2nd battery or temperature
-
Low power consumption
-
Compact and hidden installation
The SmartShunt is perfect for those who want a full overview without extra panels.
⛵ Suitable for
-
Boats and marine installations
-
Motorhomes and vans
-
Solar cell systems and off-grid systems
-
AGM, GEL, and lithium batteries
📊 Specifications
| Specification | Data |
|---|---|
| Product | SmartShunt 300A |
| Measurement | Voltage, current, SOC |
| Shunt | 300A / 50mV |
| Voltage range | 6.5 – 70 V DC |
| Bluetooth | Yes |
| Extra input | Yes (battery/temp) |
| Communication | VE.Direct |
| Dimensions | approx. 120 × 46 × 54 mm |
| Weight | approx. 0.4 kg |
| Application | Battery monitoring |
🔧 Installation
The unit is typically installed:
-
Mounted on the battery negative via shunt
-
Connected to battery and system
-
Set up via VictronConnect app
📦 Package contents
-
1 × Victron SmartShunt 300A
💡 Tip from SejlStrøm:
The SmartShunt is the obvious choice if you don't want to drill a hole for a display. You get the same function as the BMV – just directly on your mobile 👍
