Danbrit

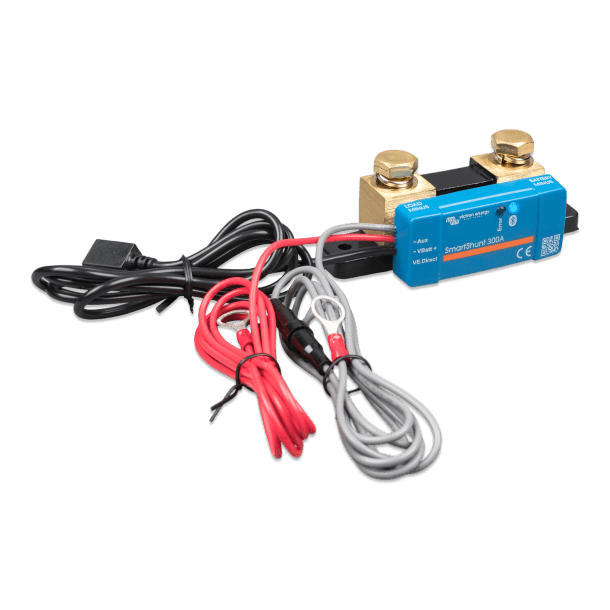

Victron SmartShunt 300A IP65

Victron SmartShunt 300A IP65

Get a better basis for monitoring power consumption on board.

  • Used to measure or display battery power consumption and condition.
  • Measurements: Voltage, current, SOC
  • Weight: approx. 0.5 – 0.6 kg
  • Voltage range: 6.5 – 70 V DC
Price each
639,95 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

Technical details
MeasurementsVoltage, current, SOC
Weightapprox. 0.5 – 0.6 kg
Voltage range6.5 – 70 V DC
Rated current300 A
Rated current300A
SpecificationData
ProductSmartShunt 300A IP65
Shunt300A / 50mV
BluetoothYes
CommunicationVE.Direct
Additional inputYes (battery/temperature/midpoint)
IP ratingIP65
Dimensions44 × 120 × 38 mm
ApplicationBattery monitoring
Ingress protection ratingIP65
Model seriesSmartShunt
BrandVictron
Installation and choosing accessories

Match the shunt, instrument, current level and wiring. Displaying state of charge requires correct setup and calibration.

Full product description

Waterproof battery monitor without display – full control directly on your phone.

The Victron SmartShunt 300A IP65 is an advanced battery monitor with Bluetooth that provides precise monitoring of your battery's condition. Instead of a physical display, you use the VictronConnect app, where you get all data in real time.

The IP65 version is dust- and water-resistant, making it ideal for marine environments and installations where the equipment is exposed to moisture and dirt.

⚡ Benefits

  • High-precision 300A battery monitor

  • IP65 – water- and dust-protected

  • Bluetooth – monitoring via VictronConnect

  • Shows SOC, voltage, current, and consumption

  • Additional input for 2nd battery or temperature

  • VE.Direct for GX integration

  • Compact and concealed installation

The SmartShunt is a modern replacement for the BMV – just without the display.

⛵ Suitable for

  • Boats and marine installations

  • Motorhomes and vans

  • Solar systems and off-grid setups

  • Installations with moisture or harsh environments

📊 Specifications

Specification Data
Product SmartShunt 300A IP65
Measuring Voltage, current, SOC
Shunt 300A / 50mV
Voltage range 6.5 – 70 V DC
Bluetooth Yes
Communication VE.Direct
Extra input Yes (battery/temp/midpoint)
IP rating IP65
Dimensions 44 × 120 × 38 mm
Weight approx. 0.5 – 0.6 kg
Application Battery monitoring

🔧 Installation

The unit is typically installed:

  • Mounted on the battery negative via shunt

  • Connected to battery and system

  • Set up via VictronConnect app

  • Optionally linked to GX system via VE.Direct

📦 In the box

  • 1 × Victron SmartShunt 300A IP65

  • Cables for connection

💡 Tip from SejlStrøm:
If you have an installation in a boat or a humid environment, the IP65 version is definitely worth choosing. You get the same functionality as the standard SmartShunt – just much more robust 👍
