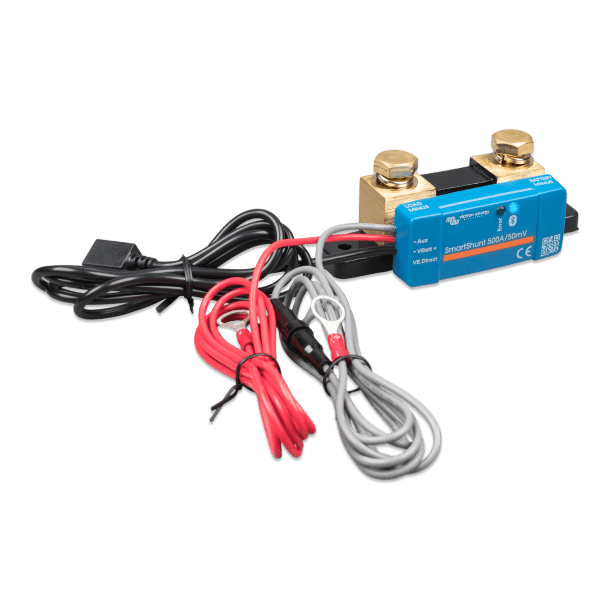

Victron SmartShunt 500A/50mV IP65
Item no. VIC-10140
Get a better basis for monitoring power consumption on board.
- Used to measure or display battery power consumption and condition.
- Measurements: Voltage, current, SOC
- Weight: approx. 0.4 kg
- Voltage range: 6.5 – 70 V DC
Technical details
| Measurements | Voltage, current, SOC |
|---|---|
| Weight | approx. 0.4 kg |
| Voltage range | 6.5 – 70 V DC |
| Rated current | 500 A |
| Rated current | 500A |
| Specification | Data |
| Product | SmartShunt 500A/50mV IP65 |
| Shunt | 500A / 50mV |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Additional input | Yes (battery/temperature/midpoint) |
| IP rating | IP65 |
| Dimensions | 46 × 120 × 54 mm |
| Terminal | M10 |
| Application | Battery monitoring |
| Ingress protection rating | IP65 |
| Model series | SmartShunt |
| Brand | Victron |
Installation and choosing accessories
Match the shunt, instrument, current level and wiring. Displaying state of charge requires correct setup and calibration.
Full product description
Waterproof battery monitor without display – full control directly on your mobile.
The Victron SmartShunt 500A IP65 is an advanced battery monitor that provides you with precise measurements of voltage, current, and the battery's state of charge (SOC). Via Bluetooth, you can track all data directly in the VictronConnect app – without the need for a display.
The IP65 version is designed for harsh environments and is both dust and water-resistant, making it perfect for marine installations and outdoor use.
⚡ Benefits
-
High-precision 500A battery monitor
-
IP65 – water and dust protected
-
Bluetooth – monitoring via VictronConnect
-
Shows SOC, voltage, current, and history
-
VE.Direct for GX integration
-
Auxiliary input for battery / temperature / midpoint
-
Compact and discreet installation
The SmartShunt is a modern replacement for the BMV – just without a display.
⛵ Suitable for
-
Boats and marine installations
-
Motorhomes and vans
-
Solar systems and off-grid systems
-
Installations with moisture or dust
📊 Specifications
| Specification | Data |
|---|---|
| Product | SmartShunt 500A/50mV IP65 |
| Measurement | Voltage, current, SOC |
| Shunt | 500A / 50mV |
| Voltage range | 6.5 – 70 V DC |
| Bluetooth | Yes |
| Communication | VE.Direct |
| Auxiliary input | Yes (battery/temp/midpoint) |
| IP rating | IP65 |
| Dimensions | 46 × 120 × 54 mm |
| Weight | approx. 0.4 kg |
| Terminal | M10 |
| Application | Battery monitoring |
🔧 Installation
The unit is typically installed:
-
Mounted on the battery negative via shunt
-
Connected to the battery and system
-
Set up via the VictronConnect app
-
Optionally connected to a GX system
📦 Package contents
-
1 × Victron SmartShunt 500A IP65
-
Connection cables
💡 Tip from SejlStrøm:
500A is the sweet spot for most setups. It easily handles inverters up to approx. 3000W – and the IP65 rating makes it perfect for a boat 👍
