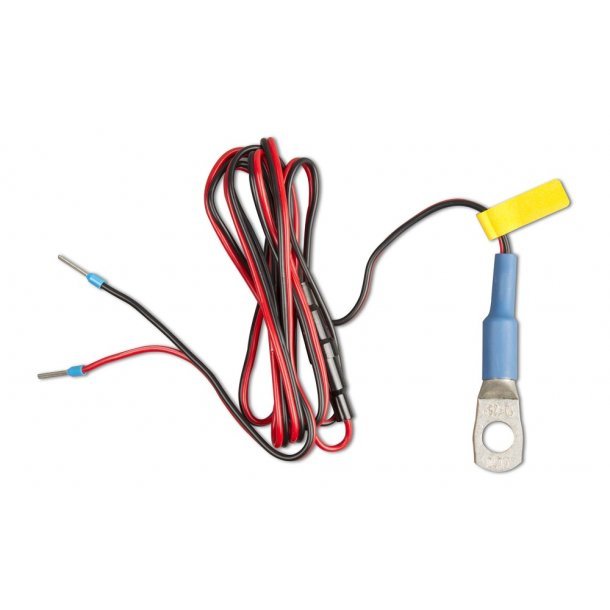

Victron Temperature Sensor for BMV-702/712 & SmartShunt
Item no. VIC-10131
Få et bedre grundlag for at følge strømforbruget om bord.
- Indgår i måling eller visning af batteriets strømforbrug og tilstand.
- Måleområde: ca. -20°C til +50°C
- Kabellængde: ca. 1–2 m
- Vægt: ca. 0.05 – 0.1 kg
Technical details
| Måleområde | ca. -20°C til +50°C |
|---|---|
| Kabellængde | ca. 1–2 m |
| Vægt | ca. 0.05 – 0.1 kg |
| Specifikation | Data |
| Produkt | Temperature Sensor for BMV |
| Kompatibilitet | BMV-702, BMV-712, SmartShunt |
| Funktion | Temperaturmåling |
| Sensortype | NTC termistor |
| Tilslutning | Direkte til shunt |
| Modelserie | SmartShunt |
| Mærke | Victron |
Installation and choosing accessories
Match shunt, instrument, strømniveau og ledningsføring. Visning af ladetilstand kræver korrekt opsætning og kalibrering.
Full product description
Precise battery temperature measurement – optimize charging and lifespan.
The Victron Temperature Sensor is an accessory for the BMV-702, BMV-712, and SmartShunt that measures the battery temperature directly. This allows you to optimize charging and protect the battery against both overheating and excessively low temperatures.
The sensor connects directly to the battery monitor's shunt and allows you to monitor the temperature and set up alarms.
⚡ Benefits
-
Accurately measures battery temperature
-
Improves charging and battery lifespan
-
Option for temperature alarms
-
Plug & play with Victron BMV and SmartShunt
-
Provides extra data to VictronConnect / GX system
-
Compact and easy installation
Temperature data is used actively in the system to ensure correct charging.
⛵ Suitable for
-
Victron BMV-702 and BMV-712
-
Victron SmartShunt
-
Boat and marine installations
-
Solar power and off-grid systems
📊 Specifications
| Specification | Data |
|---|---|
| Product | Temperature Sensor for BMV |
| Compatibility | BMV-702, BMV-712, SmartShunt |
| Function | Temperature measurement |
| Sensor type | NTC thermistor |
| Measurement range | approx. -20°C to +50°C |
| Connection | Directly to shunt |
| Cable length | approx. 1–2 m |
| Weight | approx. 0.05 – 0.1 kg |
🔧 Installation
The sensor is typically installed:
-
Mounted directly on the battery (terminal or side)
-
Connected to the shunt on BMV or SmartShunt
-
Configured via display or app
⚠️ Note: When the sensor is used, it takes over the auxiliary input (you cannot simultaneously measure an auxiliary battery/voltage).
📦 Package contents
-
1 × Victron Temperature Sensor (BMV / SmartShunt)
💡 Tip from SejlStrøm:
Temperature is underestimated. Especially with lithium and AGM, correct temperature measurement makes a huge difference for lifespan and safety – this is a small investment with a big impact 👍
