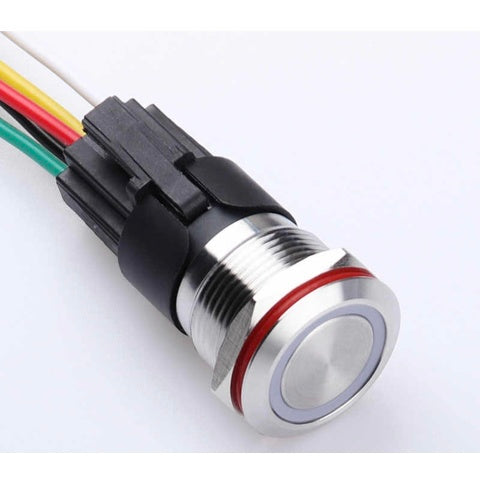

Push-button switch, latching, with one LED, no icon

Item no. SS-12513

Push-button switch, latching, with one LED, no icon

High-quality push-button switch with wire connector for easy installation, made of stainless steel.The switches are available with function icons and with either latching or momentary action. Overview: Waterproof IP 67. Diameter: 22 mm  Max. Voltage: 250 VAC 50 VDC LED voltage: 9-36 VDC Max. Current: 5A Single LED for switch illumination when active: Colors: Red, Green, Blue, Orange, White Dual LED for switch illumination when...

Your selected configuration

Standard

Price each
175,00 DKK

Includes VAT. Shipping calculated at checkout.

Not available to order

Currently unavailable to order
View delivery terms
Technical details

Your selected configuration: Standard

Contact me with the item number if you need more technical information about this product.

Full product description

High-quality push-button switch with wire connector for easy installation, made of stainless steel.
The switches are available with function icons and with either latching or momentary action.

Overview:

Waterproof IP 67.
Diameter: 22 mm
Max. Voltage: 250 VAC 50 VDC
LED voltage: 9-36 VDC
Max. Current: 5A
Single LED for switch illumination when active:
Colors: Red, Green, Blue, Orange, White

Dual LED for switch illumination when active and standby illumination when inactive:
Colors: red and green, red and blue

Available in 2 versions:
Latching or Momentary
