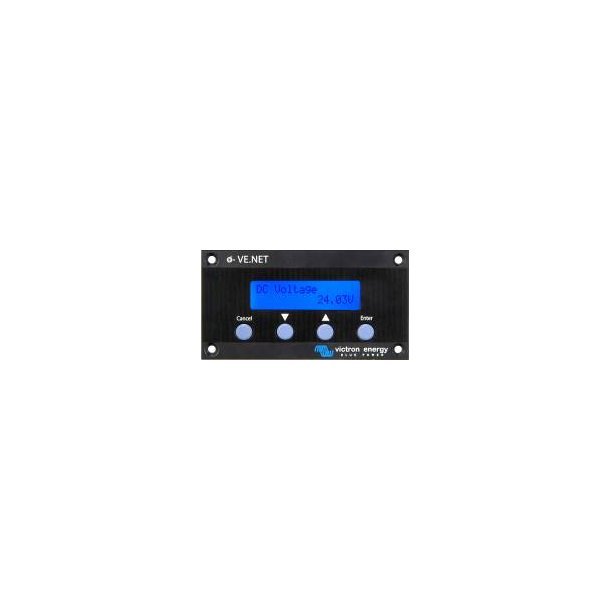

Victron VE.Net GMDSS Panel
Item no. VIC-10145
Få overblik over et kompatibelt energisystem fra et fælles betjeningspunkt.
- Samler eller formidler data fra de enheder, modellen understøtter.
- Vægt: ca. 0.2 kg
- Gør det lettere at følge systemet og opdage ændringer i driften.
Technical details
| Vægt | ca. 0.2 kg |
|---|---|
| Specifikation | Data |
| Produkt | VE.Net GMDSS Panel |
| Funktion | Overvågning / kontrolpanel |
| System | VE.Net |
| Display | LCD med baggrundsbelysning |
| Visning | Spænding, strøm, ladestatus, alarmer |
| Kommunikation | VE.Net (RS485-baseret) |
| Forsyning | Via VE.Net (9–35V DC) |
| Montering | Panel (indbygning) |
| Dimensioner | ca. 120 × 65 × 40 mm |
| Driftstemperatur | -20 til +50°C |
| Mærke | Victron |
Installation and choosing accessories
Kontrollér porte, dataprotocol, kompatible enheder og eventuelle krav til skærm eller internetforbindelse.
Full product description
Remote control panel for GMDSS chargers – monitoring and alarms in one place.
The Victron VE.Net GMDSS Panel is a specialized control and monitoring panel designed for Victron Skylla-TG GMDSS battery chargers. The panel allows for the monitoring of battery status, charging, and alarms from a central location onboard – which is essential in maritime safety systems.
It is developed for use in the GMDSS (Global Maritime Distress and Safety System), where reliable monitoring is critical.
⚡ Benefits
-
Remote monitoring of GMDSS battery charger
-
Displays battery voltage, current, and status
-
Alarm function (visual and audible)
-
Integrates via VE.Net system
-
Reliable solution for maritime environments
-
Compact flush-mount panel
The panel ensures that alarms and status are always visible – even if the charger is located elsewhere.
⛵ Suitable for
-
GMDSS systems on ships
-
Professional marine installations
-
Vessels with safety and monitoring requirements
-
Installations with Victron Skylla-TG GMDSS chargers
📊 Specifications
| Specification | Data |
|---|---|
| Product | VE.Net GMDSS Panel |
| Function | Monitoring / control panel |
| System | VE.Net |
| Display | Backlit LCD |
| View | Voltage, current, charge status, alarms |
| Communication | VE.Net (RS485-based) |
| Supply | Via VE.Net (9–35V DC) |
| Mounting | Panel (flush) |
| Dimensions | approx. 120 × 65 × 40 mm |
| Weight | approx. 0.2 kg |
| Operating temp. | -20 to +50°C |
🔧 Installation
The panel is typically installed:
-
Mounted in control panel / dash
-
Connected to GMDSS charger via VE.Net cable
-
Powered directly via VE.Net connection
-
Ready for use on startup
📦 Package contents
-
1 × Victron VE.Net GMDSS Panel
-
Mounting screws
-
Manual
💡 Tip from SejlStrøm:
This is not for "ordinary" boats. GMDSS equipment is primarily used in professional and certified installations – but if you have that setup, this is a must 👍
