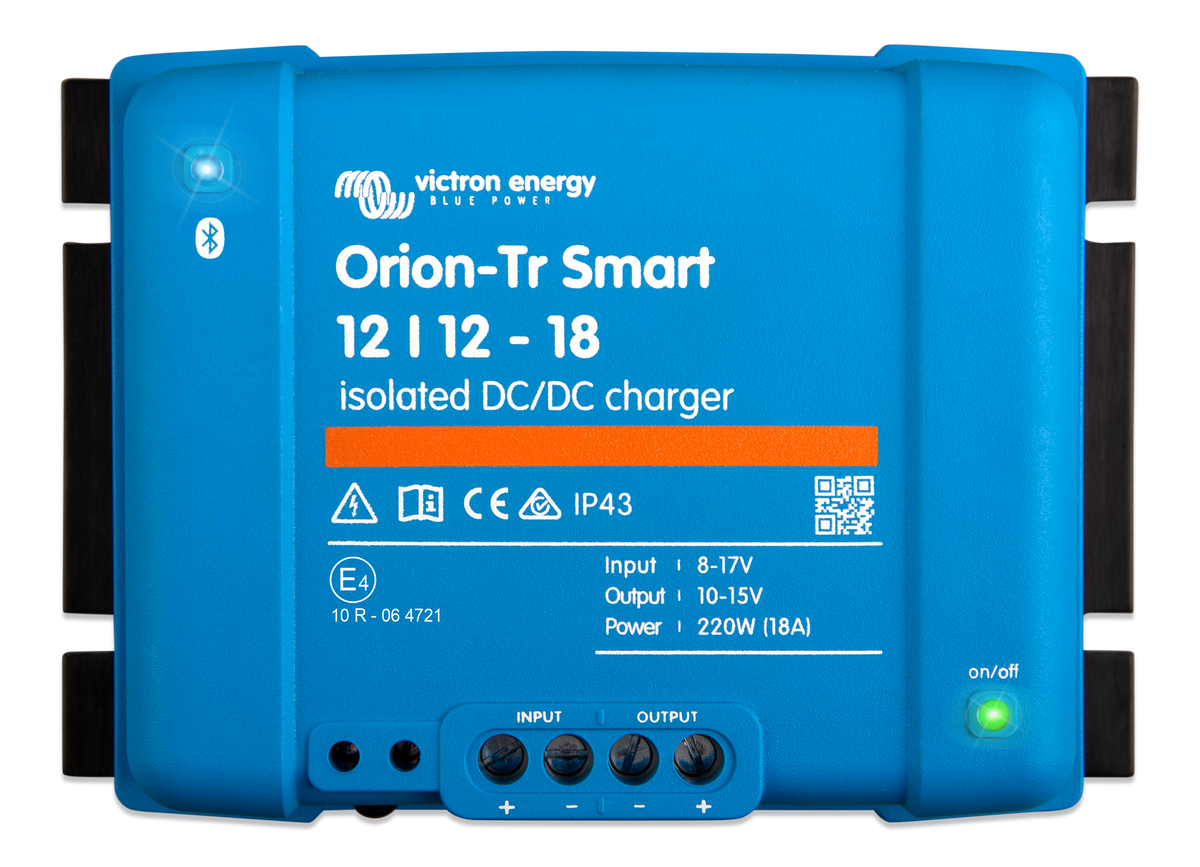

Victron Orion‑Tr Smart DC‑DC Charger – 12 V → 12 V, 18 A (220–280 W, Isolated)
1.613,00 DKK
Taxes included.
Shipping calculated at checkout.
🇩🇰 Danish support before and after purchase
🚚 Fast delivery within Denmark
🔄 30-day return policy
Description
The Victron Orion‑Tr Smart 12/12‑18A DC‑DC Charger is a galvanically isolated, three‑stage adaptive charger (bulk – absorption – float) for dual‑battery systems. It is ideal when you want to use the engine starter battery or alternator to charge your service battery with the optimal voltage profile — whether it is lead‑acid (AGM/GEL) or LiFePO₄ lithium . Bluetooth connectivity allows you to monitor and configure charging wirelessly via the VictronConnect app and customize charging profiles by battery type.
🔧 Smart features
-
Built-in Bluetooth for monitoring and setup
-
Engine running detection and remote on/off function
-
Adaptive 3-stage charging algorithm for better battery life
-
Can be paralleled with multiple units for higher output
⚙️ Technical specifications
| Property | Detail |
|---|---|
| Model | Orion‑Tr Smart 12/12‑18A Isolated |
| Input voltage | 8–17V DC |
| Output voltage | 12.2 V DC (10–15 V adjustable) |
| Continuous output current | 18 A |
| Output power | Approx. 220 W at 40 °C (up to 280 W at 25 °C) |
| Charging algorithm | Adaptive 3‑stage (bulk/absorption/float) |
| Insulation | Galvanically isolated (input/output/case separated) |
| Bluetooth | Built-in with VictronConnect |
| Protection | Overload, short circuit, over temperature |
| Operating temperature | −20°C to +55°C |
| Dimensions | Approx. 130 × 186 × 70mm |
| Weight | Approximately 1.3 kg |
| IP class | IP43 (with correct mounting) |
