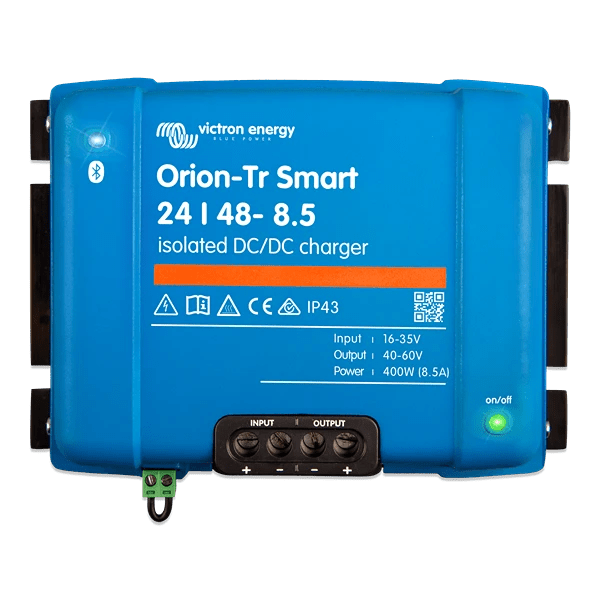

Victron Orion-Tr Smart 24/48-8.5 – DC-DC battery charger, isolated
Item no. VIC-10016
Lad forbrugsbatteriet få en opladning, der passer til dets behov.
- Overfører energi fra en egnet DC-kilde til et kompatibelt batteri med ladestyring.
- Indgangsspænding: 16–35 V DC
- Justerbar udgangsspænding: 40–60 V DC
- Kontinuerlig udgangsstrøm: 8,5 A ved nominel udgangsspænding og 40 °C
Does this product suit your needs?
Kontrolleret opladning med Bluetooth
VictronConnect bruges til opsætning via Bluetooth. Ladeprofilen skal indstilles til batteriet; både blybatterier og lithium kan anvendes, når batteriproducentens krav og eventuel BMS-styring er opfyldt. Modellen understøtter opladning i flere trin og kan også konfigureres som strømforsyning.
Technical details
| Indgangsspænding | 16–35 V DC |
|---|---|
| Justerbar udgangsspænding | 40–60 V DC |
| Kontinuerlig udgangsstrøm | 8,5 A ved nominel udgangsspænding og 40 °C |
| Spænding | 24 V / 48 V |
| Angivet strømstyrke | 8,5 A |
| Produktfunktion | Batterilader / strømforsyning |
| Nominel indgang / udgang | 24 V / 48 V |
| Galvanisk isolation | Ja |
| Bluetooth / VictronConnect | Ja |
| VE.Direct | Nej |
| Fjernbetjent til/fra | Ja – via remote on/off |
| Forbindelser | Bluetooth |
| Modelserie | Orion-Tr Smart |
| Mærke | Victron |
24 V indgang → 48 V batteri · 8,5 A · isoleret
Batteri, BMS, generator, kabler og sikringer skal passe til den konkrete installation. Denne model har ikke VE.Direct og kan ikke tilsluttes et VE.Direct-display eller VE.Direct-kabel. Indgang og udgang er galvanisk isolerede.
View manufacturer documentation (opens in a new tab)Installation and choosing accessories
Kontrollér input/output, batteriprofil, generatorens kapacitet, BMS-styring og varmeafledning. Den konkrete model afgør funktionerne.
Passer til denne type installation
- 24 V forsyningssystem og et 48 V batteri på udgangen.
- Et ladebehov, der er dimensioneret til højst 8,5 A kontinuerlig udgangsstrøm ved 40 °C.
- En installation med korrekt generatorbelastning, kabeldimensionering, sikring og batteristyring.
Tilslutning og det, der skal vælges særskilt
Kabler, sikringer, kabelsko og eventuel BMS-styring vælges efter den konkrete installation. De er ikke generelt kompatible tilkøb alene ud fra produktnavnet. Kontroller produktvarianten, pladsforholdene og producentens montageanvisninger før bestilling og installation.
Vigtige begrænsninger
Batteri, BMS, generator, kabler og sikringer skal passe til den konkrete installation. Denne model har ikke VE.Direct og kan ikke tilsluttes et VE.Direct-display eller VE.Direct-kabel. Indgang og udgang er galvanisk isolerede.
Full product description
Victron Orion-Tr Smart 24/48-8.5 – DC-DC battery charger, isolated is a battery charger for charging a 48 V service battery from a 24 V DC system. In a correctly dimensioned installation, it can be used in a boat, camper, or vehicle where charging needs to be controlled rather than simply connecting the battery banks directly.
Controlled charging with Bluetooth
VictronConnect is used for setup via Bluetooth. The charging profile must be set for the battery; both lead-acid and lithium batteries can be used, provided that the battery manufacturer's requirements and any BMS management are met. The model supports multi-stage charging and can also be configured as a power supply.
Suitable for this type of installation
- A 24 V supply system and a 48 V battery on the output.
- A charging requirement dimensioned for a maximum of 8.5 A continuous output current at 40 °C.
- An installation with correct alternator load, cable sizing, fusing, and battery management.
Technical information
| Product function | Battery charger / power supply |
|---|---|
| Nominal input / output | 24 V / 48 V |
| Input voltage range | 16–35 V DC |
| Adjustable output voltage | 40–60 V DC |
| Continuous output current | 8.5 A at nominal output voltage and 40 °C |
| Galvanic isolation | Yes |
| Bluetooth / VictronConnect | Yes |
| VE.Direct | No |
| Remote on/off | Yes – via remote on/off |
The current limit in the table applies at nominal output voltage. At higher temperatures, the load must be reduced according to the datasheet. If the output is set higher than the nominal voltage, the requirement for the necessary input voltage also increases.
Connection and items to be selected separately
Cables, fuses, cable lugs, and any BMS management must be selected according to the specific installation. They are not generally compatible accessories based solely on the product name. Check the product variant, space requirements, and the manufacturer's installation instructions before ordering and installation.
Important limitations
Battery, BMS, alternator, cables, and fuses must be suitable for the specific installation. This model does not have VE.Direct and cannot be connected to a VE.Direct display or VE.Direct cable. Input and output are galvanically isolated.
Manual and documentation
Help with selection
Are you unsure about input voltage, battery type, or charging current? Ask me before purchasing. Provide details about the battery, alternator/supply, and the desired function so that the choice can be clarified.
