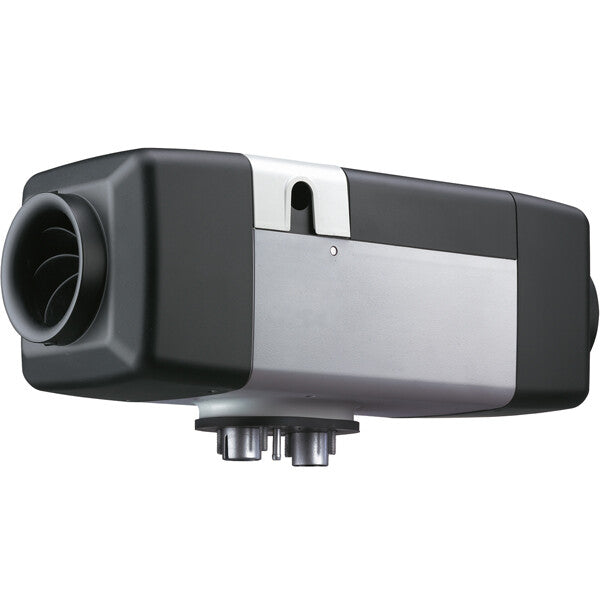

Webasto Air Top 40 EVO marine heater 4 kW – incl. installation parts
Hold varmen, når aftenen bliver kølig, og turen gerne må vare lidt længere.
- Vejledende førstevalg: 11–20 m² / 31–40 fod.
- Leverer varme via et korrekt dimensioneret og monteret anlæg.
- Spænding: 12V / 24V
- Nominel effekt: 4 kW
- Effektangivelse: 4 kW
Does this product suit your needs?
Sådan bruges størrelsesangivelsen
Dette er SejlStrøms vejledende førstevalg ved normal isolering, ikke en producentgaranti eller en beregning til helårsbrug. Arealet er det indvendige rum, der skal opvarmes. Bådlængden er kun en grov sorteringshjælp og kan ikke omregnes direkte til m². Ved frost, stort glasareal, flere kahytter eller helårsbeboelse beregner jeg behovet konkret.
What is included
- Heat output 1.5 - 3.5 (4.0*) KW 5,100 - 12000 (13,600*)BTU/h
- Brændstof Diesel 0.18 - 0.43 (0.49) l/h
- Rated power consumption 15 - 40 (55)W
- Luftafgang Ø 90 mm
- Udsugning Ø 24 mm
- Boost power level for a maximum duration of 6 hours
- Kontrolpanel
- Ekstern temp.føler
- Ledningsnet
- Udstødning m/lyddæmper
- Udstødnings-skroggennemføring
- Brændstofslange
- Indsugningsslange m/lyddæmper
- Tank/sugestuds
Technical details
Your selected configuration: 12V
| Vejledende opvarmet areal | 11–20 m² |
|---|---|
| Vejledende bådlængde | 31–40 fod |
| Spænding | 12V |
| Varmeeffekt | 4 kW |
| Nominel effekt | 4 kW |
| Effektangivelse | 4 kW |
| Producent | Webasto |
| Produkttype | Dieselvarmer |
| BEMÆRK | Bådmonteringskit for luftfordeling skal bestilles separat. |
| Mærke | Webasto |
Installation and choosing accessories
Bådlængde alene afgør ikke størrelsen. Følg manualen for brændstof, strøm, forbrændingsluft og gastæt udstødning til det fri.
Installation og kompatibilitet
Planlæg placering, friskluft, varmluftslanger, brændstofforsyning, strømtilslutning og udstødning som ét samlet system. Udstødningen skal være gastæt og føres sikkert ud af båden med korrekt varmeafstand til brændbart materiale.
Full product description
Secure shopping at SejlStrøm: 2-year warranty · Danish service and support · 30-day return policy.
Unsure about the size or model? I am happy to help you choose the right diesel heater for your boat or installation before you order. Compare diesel heaters
The Webasto Air Top 40 EVO boat heater 4 kW – incl. installation parts is a diesel-powered air heater for efficient heating of cabins and living spaces on board. It is an obvious choice when you want to extend the boating season and desire stable heat without being dependent on shore power.
The product can be selected by voltage so it can be adapted to the specific installation.
Guidance on size
Heated area: 11–20 m²
Boat length: 31–40 feet
This is SejlStrøm's indicative first choice for standard insulation, not a manufacturer guarantee or a calculation for year-round use. The area is the interior space that needs heating. The boat length is only a rough guide and cannot be converted directly to m². In case of frost, large glass areas, multiple cabins, or year-round living, I calculate the need specifically.
⚡ Benefits
- Efficient heating of cabins and living spaces
- Compact solution for sailboats and motorboats
- Diesel operation with moderate electrical consumption
- Original Webasto component for a cohesive heating system
⛵ Suitable for
- Sailboats and motorboats
- Heating of cabins, salons, and other living spaces
- New installation or replacement of an existing boat heater
📦 Included
- Heat output 1.5 - 3.5 (4.0*) KW 5,100 - 12000 (13,600*)BTU/h
- Fuel Diesel 0.18 - 0.43 (0.49) l/h
- Rated power consumption 15 - 40 (55)W
- Air outlet Ø 90 mm
- Exhaust Ø 24 mm
- Boost power level for a maximum duration of 6 hours
- Control panel
- External temp. sensor
- Wiring harness
- Exhaust w/silencer
- Exhaust hull fitting
- Fuel line
- Intake hose w/silencer
- Tank/suction pipe
📊 Specifications
| Manufacturer | Webasto |
|---|---|
| Product type | Diesel heater |
| Voltage | 12V / 24V |
| Rated output | 4 kW |
| NOTE | Boat installation kit for air distribution must be ordered separately. |
🔧 Installation and compatibility
Plan the placement, fresh air, hot air hoses, fuel supply, power connection, and exhaust as one integrated system. The exhaust must be gas-tight and safely routed out of the boat with the correct heat distance to flammable material.
📄 Manuals and documentation
💡 Tip from SejlStrøm
Calculate the heating requirement based on the boat's size and insulation, and order air hoses, nozzles, exhaust parts, and electrical connections at the same time. This ensures an installation that can be completed without missing small parts.
Your selected configuration: 12V
| Vejledende opvarmet areal | 11–20 m² |
|---|---|
| Vejledende bådlængde | 31–40 fod |
| Spænding | 12V |
| Varmeeffekt | 4 kW |
| Nominel effekt | 4 kW |
| Effektangivelse | 4 kW |
| Producent | Webasto |
| Produkttype | Dieselvarmer |
| BEMÆRK | Bådmonteringskit for luftfordeling skal bestilles separat. |
| Mærke | Webasto |
Your selected configuration: 24V
| Vejledende opvarmet areal | 11–20 m² |
|---|---|
| Vejledende bådlængde | 31–40 fod |
| Spænding | 24V |
| Varmeeffekt | 4 kW |
| Nominel effekt | 4 kW |
| Effektangivelse | 4 kW |
| Producent | Webasto |
| Produkttype | Dieselvarmer |
| BEMÆRK | Bådmonteringskit for luftfordeling skal bestilles separat. |
| Mærke | Webasto |
