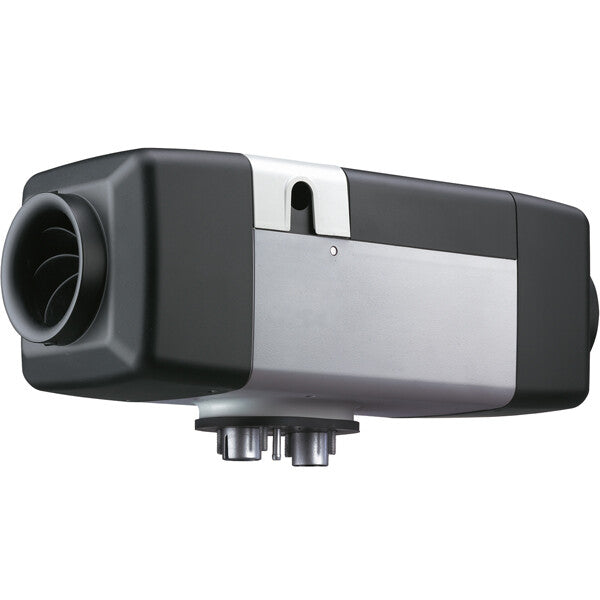

Webasto Air Top 55 EVO marine heater 5.5 kW – incl. installation kit

Item no. WEB-10012

Webasto Air Top 55 EVO marine heater 5.5 kW – incl. installation kit

Hold varmen, når aftenen bliver kølig, og turen gerne må vare lidt længere.

  • Vejledende førstevalg: 16–25 m² / 36–45 fod.
  • Leverer varme via et korrekt dimensioneret og monteret anlæg.
  • Spænding: 12V / 24V
  • Nominel effekt: 5.5 kW
  • Effektangivelse: 5,5 kW
Your selected configuration

12V

Price each
16.399,00 DKK

Includes VAT. Shipping calculated at checkout.

View delivery terms

Split your payment with ViaBill or Anyday

See amounts and terms with the provider. Choose your payment method at checkout.

See what is included and what the installation requires

Does this product suit your needs?

Sådan bruges størrelsesangivelsen

Dette er SejlStrøms vejledende førstevalg ved normal isolering, ikke en producentgaranti eller en beregning til helårsbrug. Arealet er det indvendige rum, der skal opvarmes. Bådlængden er kun en grov sorteringshjælp og kan ikke omregnes direkte til m². Ved frost, stort glasareal, flere kahytter eller helårsbeboelse beregner jeg behovet konkret.

What is included

  • Heat output 1.5 5.0 (5.5*) kW
  • Brændstof 5,100 -17,000 (18,800*) BTU/h
  • Rated power consumption 15 - 95 (130) W
  • Luftafgang Ø 90 mm
  • Udsugning Ø 24 mm
  • Boost power level for a maximum duration of 30 min.
  • Kontrolpanel
  • Ekstern temp.føler
  • Ledningsnet
  • Udstødning m/lyddæmper
  • Udstødnings-skroggennemføring
  • Brændstofslange
  • Indsugningsslange m/lyddæmper
  • Tank/sugestuds
Technical details

Your selected configuration: 12V

Vejledende opvarmet areal16–25 m²
Vejledende bådlængde36–45 fod
Varmeeffekt5,5 kW
Volt12 V
Nominel effekt5.5 kW
ProducentWebasto
ProdukttypeDieselvarmer
BEMÆRKBådmonteringskit for luftfordeling skal bestilles separat.
MærkeWebasto
Bredde148,00 mm
Højde162 mm
Vægt5,90 kg
Watt5500 W
Installation and choosing accessories

Bådlængde alene afgør ikke størrelsen. Følg manualen for brændstof, strøm, forbrændingsluft og gastæt udstødning til det fri.

Installation og kompatibilitet

Planlæg placering, friskluft, varmluftslanger, brændstofforsyning, strømtilslutning og udstødning som ét samlet system. Udstødningen skal være gastæt og føres sikkert ud af båden med korrekt varmeafstand til brændbart materiale.

Full product description

Shop safely at SejlStrøm: 2-year warranty · Danish service and support · 30-day return policy.

Unsure about the size or model? I am happy to help you choose the right diesel heater for your boat or installation before you order. Compare diesel heaters

Stay warm when the evening turns chilly and you want your trip to last a little longer.

Technical specifications

Recommended heated area 16–25 m²
Recommended boat length 36–45 feet
Rated power 5.5 kW
Manufacturer Webasto
Product type Diesel heater
NOTE Boat installation kit for air distribution must be ordered separately.
Brand Webasto
Width 148.00 mm
Height 162 mm
Weight 5.90 kg
Watts 5500 W

12V

Recommended heated area 16–25 m²
Recommended boat length 36–45 feet
Heating capacity 5.5 kW
Voltage 12 V

24V

Recommended heated area 16–25 m²
Recommended boat length 36–45 feet
Heating capacity 5.5 kW
Voltage 24 V

What's included

  • Heat output 1.5 5.0 (5.5*) kW
  • Fuel 5,100 -17,000 (18,800*) BTU/h
  • Rated power consumption 15 - 95 (130) W
  • Air outlet Ø 90 mm
  • Exhaust Ø 24 mm
  • Boost power level for a maximum duration of 30 min.
  • Control panel
  • External temp. sensor
  • Wiring harness
  • Exhaust with silencer
  • Exhaust hull feed-through
  • Fuel line
  • Intake hose with silencer
  • Tank/suction fitting

Compatibility and installation

Boat length alone does not determine the size. Follow the manual regarding fuel, power, combustion air, and gas-tight exhaust to the outside.

Installation and compatibility

Plan the placement, fresh air, hot air hoses, fuel supply, power connection, and exhaust as one complete system. The exhaust must be gas-tight and routed safely out of the boat with the correct heat distance to flammable materials.

Good to know

How to use the size guide

This is SejlStrøm’s recommended first choice for normal insulation, not a manufacturer warranty or a calculation for year-round use. The area is the interior space to be heated. Boat length is only a rough sorting tool and cannot be converted directly to m². In freezing conditions, large glass areas, multiple cabins, or year-round living, I will calculate the specific requirements.
